可调式精密并联稳压器 ADJUSTABLE PRECISION SHUNT REGULATOR
description
The TL431 is a three-terminal adjustable shunt regulator with specified thermal stability over applicable automotive temperature ranges. The output voltage can be set to any value between Vref approximately 2.5 V and 36 V, with two external resistors see Figure 17. This device has a typical output impedance of 0.2 Ω. Active output circuitry provides a sharp turn-on characteristic, making this device an excellent replacement for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies.
Qualified for Automotive Applications
Operation From −40°C to 125°C
Reference Voltage Tolerance at 25°C
− 1%...A Grade
− 0.5%...B Grade
Typical Temperature Drift
− 14 mV Q Temp
Low Output Noise
0.2-ΩTypical Output Impedance
Sink-Current Capability = 1 mA to 100 mA
Adjustable Output Voltage = Vrefto 36 V
容差 ±1 %
输入电压DC 2.50V ~ 36.0V
输出电压 2.495V ~ 36V
输出电流 100 mA
通道数 1
针脚数 3
输入电压Max 37 V
输出电压Max 36 V
输出电压Min 2.495 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 37 V
安装方式 Surface Mount
引脚数 3

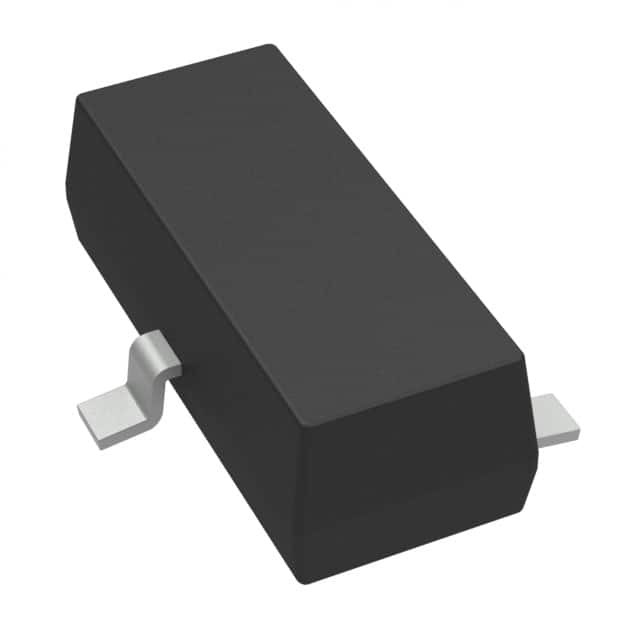

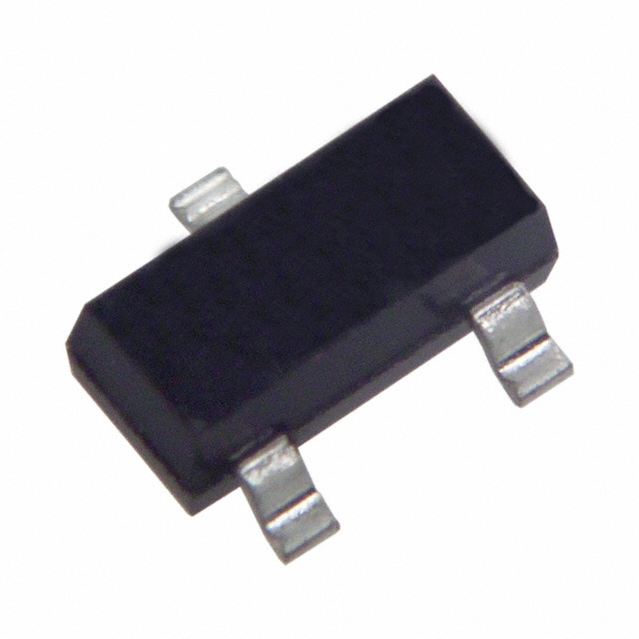

封装 SOT-23-3
长度 2.92 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
温度系数 ±92 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TL431AQDBZRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TL431AIDBZR 德州仪器 | 完全替代 | TL431AQDBZRQ1和TL431AIDBZR的区别 |
TL431ACDBZR 德州仪器 | 完全替代 | TL431AQDBZRQ1和TL431ACDBZR的区别 |
TL432BQDBZR 德州仪器 | 完全替代 | TL431AQDBZRQ1和TL432BQDBZR的区别 |
