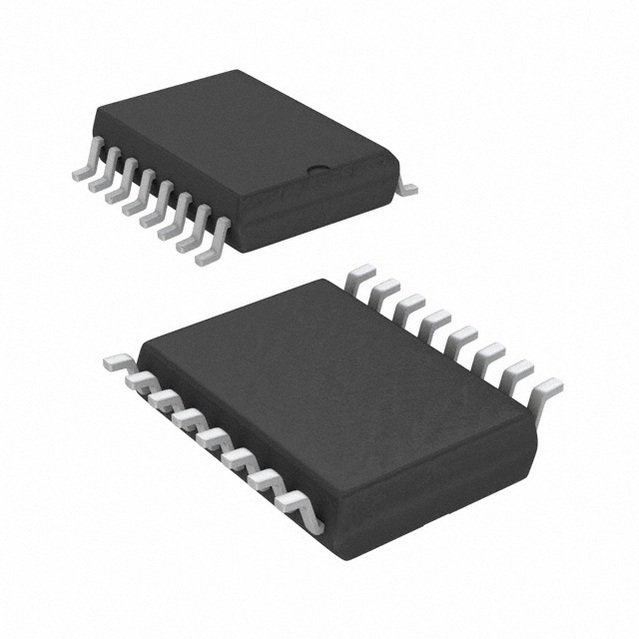

TLC5628CDWR

8 位，10us 八路 DAC，串行输入，1x 或 2x 输出可编程，同步更新，低功耗 16-SOIC 0 to 70

description

The TLC5628C and TLC5628I are octal 8-bit voltage output digital-to-analog converters DACs with buffered reference inputs high impedance. The DACs produce an output voltage that ranges between either one or two times the reference voltages and GND and are monotonic. The device is simple to use, running from a single supply of 5 V. A power-on reset function is incorporated to ensure repeatable start-up conditions.

Eight 8-Bit Voltage Output DACs

5-V Single-Supply Operation

Serial Interface

High-Impedance Reference Inputs

Programmable 1 or 2 Times Output Range

Simultaneous Update Facility

Internal Power-On Reset

Low-Power Consumption

Half-Buffered Output

applications

Programmable Voltage Sources

Digitally Controlled Amplifiers/Attenuators

Mobile Communications

Automatic Test Equipment

Process Monitoring and Control

Signal Synthesis
