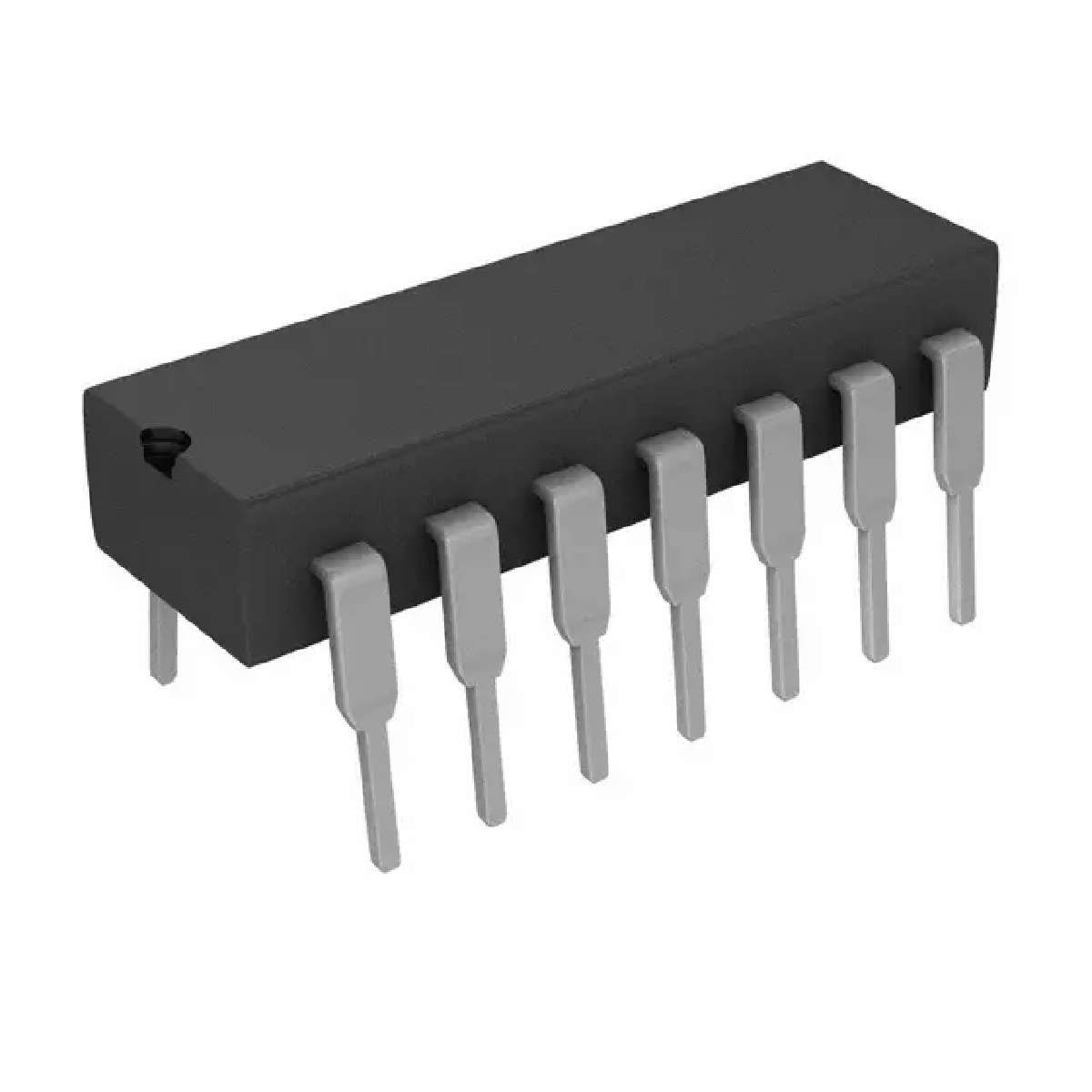

TLC374INE4

路LinCMOS四路差动比较仪 LinCMOS QUADRUPLE DIFFERENTIAL COMPARATORS

description

These quadruple differential comparators are fabricated using LinCMOStechnology and consist of four independent voltage comparators designed to operate from a single power supply. Operation from dual supplies is also possible if the difference between the two supplies is 2 V to 18 V.

Single- or Dual-Supply Operation

Wide Range of Supply Voltages 2 V to 18 V

Very Low Supply Current Drain 0.3 mA Typ at 5 V

Fast Response Time. . . 200 ns Typ for TTL-Level Input Step

Built-In ESD Protection

Extremely Low Input Bias Current 5 pA Typ

Ultrastable Low Input Offset Voltage

Input Offset Voltage Change at Worst-Case Input Conditions Typically 0.23 µV/Month, Including the First 30 Days

Common-Mode Input Voltage Range Includes Ground

Outputs Compatible With TTL, MOS, andCMOS

Pin-Compatible With LM339
