微功耗电压监控器复位低有效 MICROPOWER VOLTAGE SUPERVISOR RESET ACTIVE LOW
Use the microprocessor supervisory circuit from STMicroelectronics to protect your circuit in the event of an emergency. This device has a maximum power dissipation of 700 mW. Its maximum power dissipation is 700 mW. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 4.5 V, with a minimum of 4.18 V and a maximum of 4.7 V.
电源电压DC 5.50V max
输出电流 20 mA
供电电流 0.012 mA
针脚数 8
耗散功率 700 mW
阈值电压 4.5 V
复位电压Min 4.18 V
复位电压Max 4.7 V
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 700 mW
电源电压 1.5.5 VDC
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 8

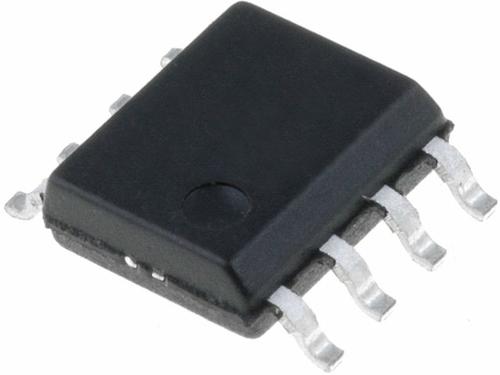

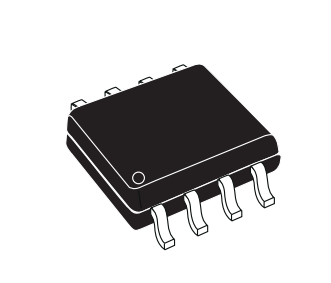

封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.25 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TS831-4IDT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TS831-4ID 意法半导体 | 类似代替 | TS831-4IDT和TS831-4ID的区别 |
