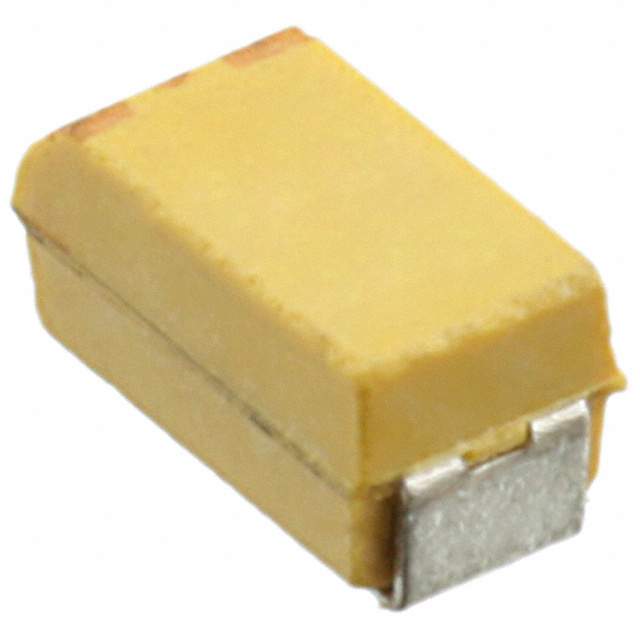

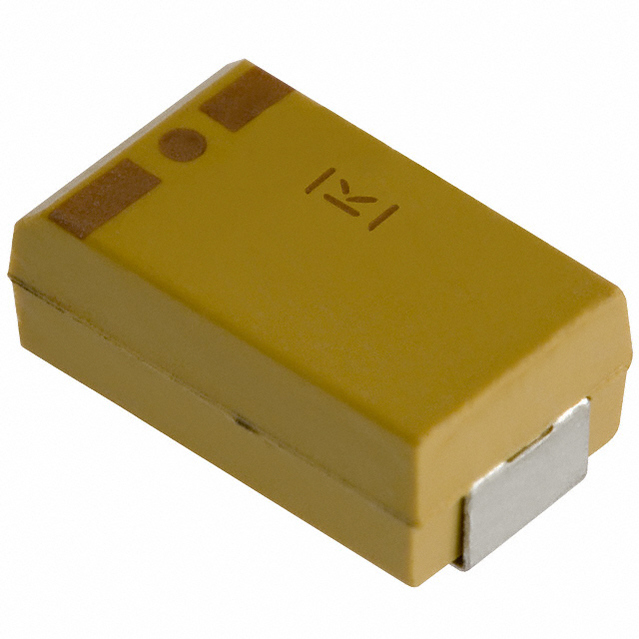

KEMET T494A475M025AT 钽电容, 4.7uF, 25V, 3Ω, 3216-18
Compared to other capacitors, this tantalum solid capacitor from Kemet provides a higher capacitance per volume, as well as a lower footprint design. It can withstand a voltage of 25 VDC. Its leakage current is 1.2 μA. This solid capacitor has a maximum operating temperature of 125 °C. Its capacitance value is 4.7uF. It has a tolerance of 20%. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep.
额定电压DC 25.0 V
电容 4.7 µF
等效串联电阻ESR 3 Ω
容差 ±20 %
产品系列 T494
纹波电流 158 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
引脚数 2
封装 1206
长度 3.20 mm
宽度 1.6 mm
高度 1.6 mm
封装 1206
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
寿命（小时） 2000h @125℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T494A475M025AT KEMET Corporation 基美 | 当前型号 | 当前型号 |
T494A475M016AT 基美 | 功能相似 | T494A475M025AT和T494A475M016AT的区别 |
T494A475M010AT 基美 | 功能相似 | T494A475M025AT和T494A475M010AT的区别 |
