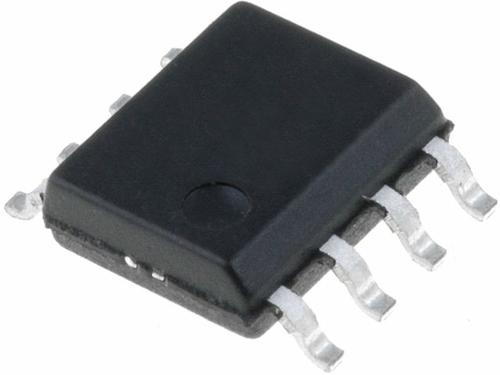

TS831系列 4.33 V 20 µs 复位 低电平有效 微功耗 电压监控器 -SOIC-8
Control the core processor in case of failure with the microprocessor supervisory circuit, developed by STMicroelectronics. This device has a maximum power dissipation of 700 mW. Its maximum power dissipation is 700 mW. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 4.33 V, with a minimum of 4.11 V and a maximum of 4.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 5.50V max
供电电流 0.012 mA
耗散功率 0.7 W
阈值电压 4.33 V
复位电压Min 4.11 V
复位电压Max 4.5 V
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 700 mW
电源电压 1.5.5 VDC
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TS831-5IDT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TS831-5ID 意法半导体 | 类似代替 | TS831-5IDT和TS831-5ID的区别 |
