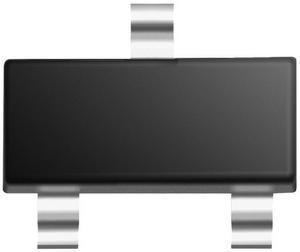

STMICROELECTRONICS TS3431BILT 电压基准, 分流 - 可调, TS3431系列, 1.24V至24V, SOT-23-3
参考电压,可调节,STMicroelectronics
### 电压参考,STMicroelectronics
立创商城:
1.24V~24V 100mA
得捷:
IC VREF SHUNT ADJ 0.5% SOT23-3
欧时:
STMicroelectronics TS3431BILT 可调 1.24 - 24V 电压参考, 1.24 → 24 V输出, ±0.5 %精确度
贸泽:
Voltage References 1.24V Prog Shunt
艾睿:
Even in the event of large power supply variations, this TS3431BILT voltage reference power management device from STMicroelectronics can produce and maintain a precise DC voltage. It has an initial accuracy of 0.5%. By working with a maximum input voltage of 25 V, this is the best way to control the power in your circuit. With an output that has a voltage of 1.24 to 24 V, this is power management at its best. This voltage reference circuit supports shunt topology. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage reference circuit has an operating temperature range of -40 °C to 125 °C. It runs with a maximum temperature coefficient of 100ppm/°C.
安富利:
V-Ref Adjustable 1.24V to 24V 100mA 3-Pin SOT-23 T/R
Chip1Stop:
V-Ref Adjustable 1.24V to 24V 100mA 3-Pin SOT-23 T/R
Verical:
V-Ref Adjustable 1.24V to 24V 100mA 3-Pin SOT-23 T/R
Newark:
# STMICROELECTRONICS TS3431BILT Voltage Reference, Shunt - Adjustable, TS3431 Series, 1.24V to 24V, SOT-23-3
DeviceMart:
IC VREF SHUNT PREC ADJ SOT-23-3
Win Source:
Shunt Voltage Reference IC 24V ±0.5% 100mA TO-236-3, SC-59, SOT-23-3
电源电压DC 36.0V max
容差 ±0.5 %
输入电压DC 1.24V ~ 24.0V
输出电压 1.24V ~ 24V
输出电流 100 mA
供电电流 100 mA
通道数 1
针脚数 3
耗散功率 360 mW
输入电压Max 25 V
输出电压Max 24 V
输出电压Min 1.24 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 25 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 3.04 mm
宽度 1.4 mm
高度 1.02 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TS3431BILT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LMV431AIMFX/NOPB 德州仪器 | 功能相似 | TS3431BILT和LMV431AIMFX/NOPB的区别 |
LMV431AIMF/NOPB 德州仪器 | 功能相似 | TS3431BILT和LMV431AIMF/NOPB的区别 |
LMV431BIMF/NOPB 德州仪器 | 功能相似 | TS3431BILT和LMV431BIMF/NOPB的区别 |
