TLVH431BICT

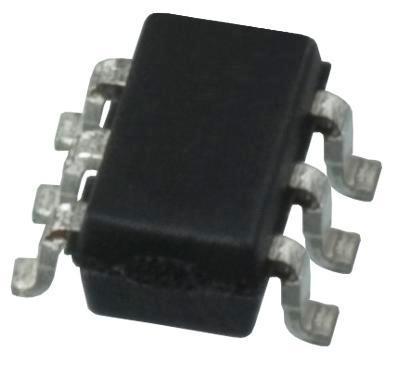

TLVH431 系列 1.24 V 表面贴装 可编程 并联 电压基准 - SOT-323-6L

The TLVH431 is a low power programmable shunt voltage reference, with guaranteed temperature stability over the entire operating temperature range.

The output voltage may be set to any value between 1.24 V and 18 V by means of an external resistor divider.

The TLVH431 operates with a wide current range from 100 μA to 60 mA with a typical dynamic impedance of 0.22 Ω.

Available in SOT23-3L, SOT23-5L and SOT323-6L surface mounted packages, it can be designed in applications where space saving is a critical issue.

The low operating current is a key advantage for power restricted designs.

**Key Features**

.

Adjustable output voltage: 1.24 V to 18 V

.

Low operating current: 100 μA at 25 °C

.

0.25%, 0.5%, 1% and 1.5% voltage precision

.

Sink current capability up to 60 mA

.

-40 to +125 °C temperature range

.

100 ppm/°C maximum temperature coefficient

.

Available in SOT23-3L, SOT23-5L and SOT323-6L packages
