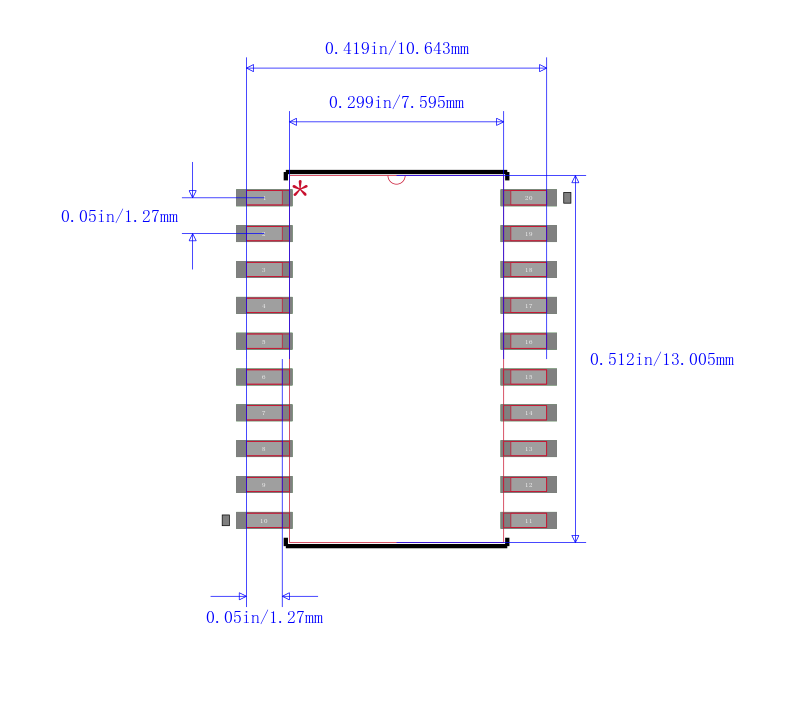

TLV5619CDWR

12位D/A转换器

DESCRIPON

The TLV5619 is a 12-bit voltage output DAC with a microprocessor and TMS320 compatible parallel interface. The 12 data bits are double buffered so that the output can be updated asynchronously using the LDAC pin. During normal operation, the device dissi-pates 8 mW at a 5-V supply and 4.3 mW at a 3-V supply. The power consumption can be lowered to 50 nW by setting the DAC to power-down mode.

The output voltage is buffered by a ×2 gain rail-to-rail amplifier, which features a Class A output stage to improve stability and reduce settling time.

FEATURES

• Single Supply 2.7-V to 5.5-V Operation

• ± 0.4 LSB Differential Nonlinearity DNL,

  ±1.5 LSB Integral Nonlinearity INL

• 12-Bit Parallel Interface

• Compatible With TMS320 DSP

• Internal Power On Reset

• Settling Time 1 µs Typ

• Low Power Consumption:

   – 8 mW for 5-V Supply

   – 4.3 mW for 3-V Supply

• Reference Input Buffers

• Voltage Output

• Monotonic Over Temperature

• Asynchronous Update

APPLICATIONS

• Battery Powered Test Instruments

• Digital Offset and Gain Adjustment

• Battery Operated/Remote Industrial Controls

• Machine and Motion Control Devices

• Cordless and Wireless Telephones

• Speech Synthesis

• Communication Modulators

• Arbitrary Waveform Generation
