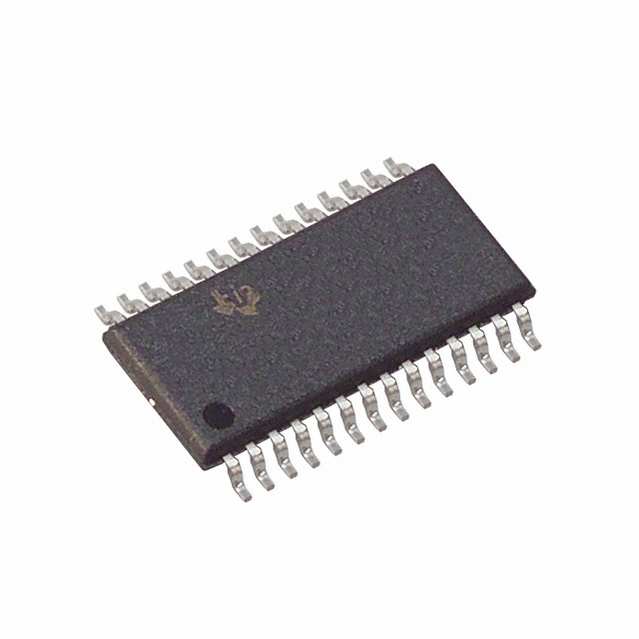

THS5651AIPWRG4

10Bit, 125MSPS Digital-to-Analog Converter DAC 28-TSSOP -40℃ to 85℃

description

The THS5651A is a 10-bit resolution digital-to-analog converter DAC specifically optimized for digital data transmission in wired and wireless communication systems. The 10-bit DAC is a member of the CommsDAC series of high-speed, low-power CMOS digital-to-analog converters. The CommsDAC family consists of pin compatible 14-, 12-, 10-, and 8-bit DACs. All devices offer identical interface options, small outline package and pinout. The THS5651A offers superior ac and dc performance while supporting update rates up to 125 MSPS.

• Member of the Pin-Compatible CommsDAC™ Product Family

• 125 MSPS Update Rate

• 10-Bit Resolution

• Superior Spurious Free Dynamic Range Performance SFDR to Nyquist at 40 MHz Output: 62 dBc

• 1 ns Setup/Hold Time

• Differential Scalable Current Outputs: 2 mA to 20 mA

• On-Chip 1.2-V Reference

• 3 V and 5 V CMOS-Compatible Digital Interface

• Straight Binary or Twos Complement Input

• Power Dissipation: 175 mW at 5 V, Sleep Mode: 25 mW at 5 V

• Package: 28-Pin SOIC and TSSOP
