TC7109ACLW

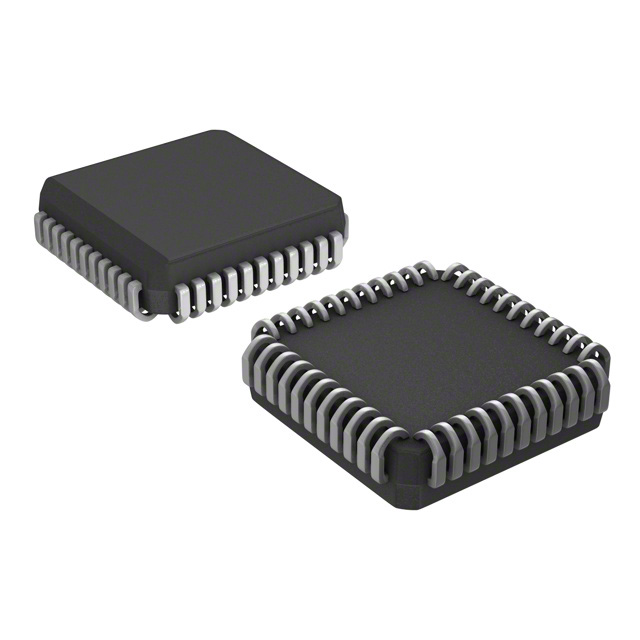

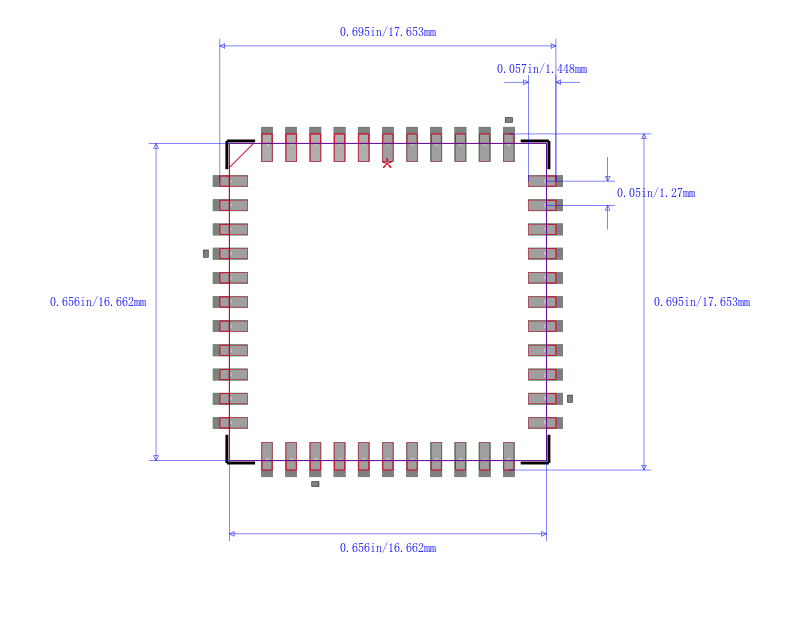

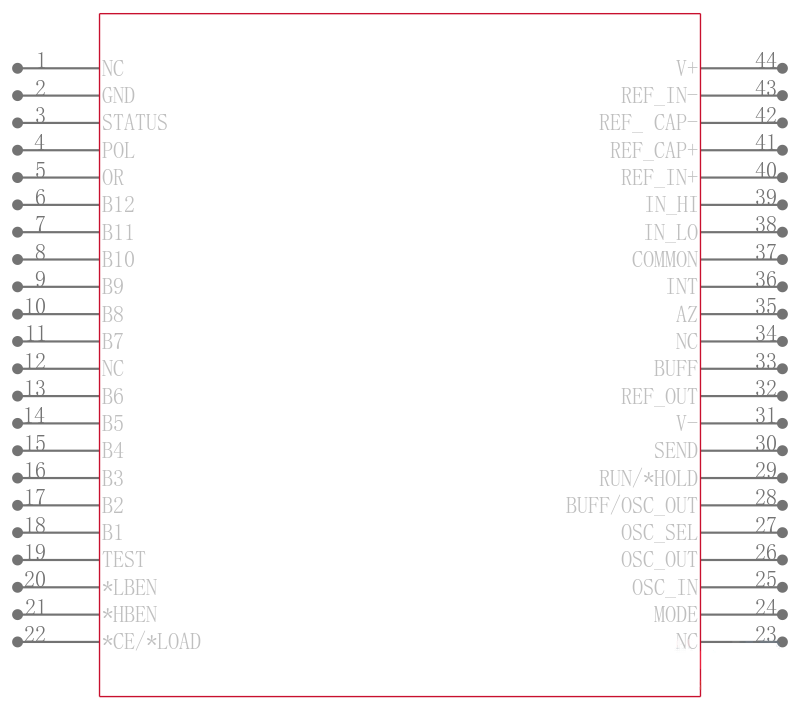

5.5 V 12位 模数转换器 表面贴装 - PLCC-44

General Description:

The TC7109A is a 12-bit plus sign, CMOS low power Analog-to-Digital Converter ADC. Only eight passive components and a crystal are required to form a complete dual slope integrating ADC.

The improved VOH source current and other TC7109A features make it an attractive per-channel alternative to analog multiplexing for many data acquisition applications. These features include typical input bias current of 1pA, drift of less than 1μV/°C, input noise typically 15μVP-P, and auto-zero. True differential input and reference allow measurement of bridge type transducers, such as load cells, strain gauges and temperature transducers.

Features:

• Zero Integrator Cycle for Fast Recovery from Input Overloads

• Eliminates Cross-Talk in Multiplexed Systems

• 12-Bit Plus Sign Integrating A/D Converter with Over Range Indication

• Sign Magnitude Coding Format

• True Differential Signal Input and Differential Reference Input

• Low Noise: 15μVP-P Typ.

• Input Current: 1pA Typ.

• No Zero Adjustment needed

• TTL Compatible, Byte Organized Tri-State Outputs

• UART Handshake Mode for simple Serial Data Transmissions
