TLV70733DQNR

200毫安，低IQ ，低噪声，低压差稳压器用于便携式设备 200-mA, Low-IQ, Low-Noise, Low-Dropout Regulator for Portable Devices

Description

The TLV707 series TLV707 and TLV707P of low dropout linear regulators LDOs are low quiescent current devices with excellent line and load transient performance for power-sensitive applications. These devices provide a typical accuracy of 0.5%. All versions have thermal shutdown and overcurrent protection for safety.

Features

• 0.5% Typical Accuracy

• Supports 200-mA Output

• Low IQ: 25 μA

• Fixed-Output Voltage Combinations Possible from 0.85 V to 5.0 V1

• High PSRR:

   – 70 dB at 100 Hz

   – 50 dB at 1 MHz

• Stable With Effective Capacitance of 0.1 μF2

• Thermal Shutdown and Overcurrent Protection

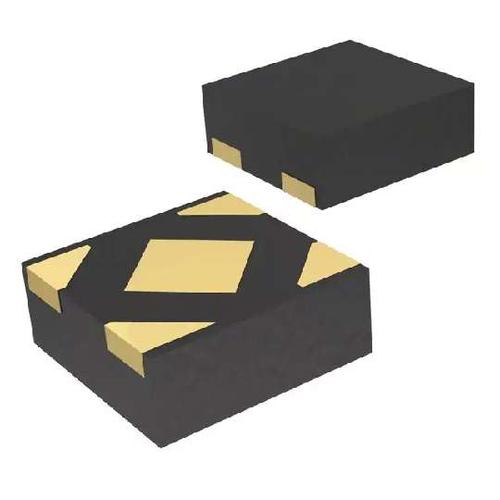

• Package: 1-mm × 1-mm DQN X2SON

1 For all available voltage options, see the orderable addendum at the end of the data sheet.

2 See Mechanical, Packaging, and Orderable Information for more details.

Applications

• Smart Phones and Wireless Handsets

• Gaming and Toys

• WLAN and Other PC Add-On Cards

• TVs and Set-Top Boxes

• Wearable Electronics
