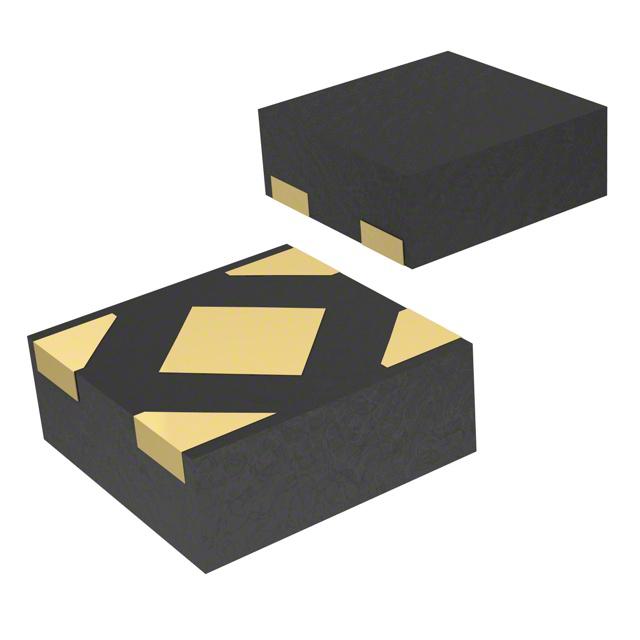

TLV71733PDQNR

150毫安，低压差稳压器，带有折返式限流，用于便携式设备 150-mA, Low-Dropout Regulator with Foldback Current Limit for Portable Devices

PMIC - 稳压器 - 线性 正 固定 1 输出 150mA 4-X2SON（1x1）

立创商城:
TLV71733PDQNR

德州仪器TI:
150-mA, low-IQ, low-dropout voltage regulator with active output discharge & enable

得捷:
IC REG LINEAR 3.3V 150MA 4X2SON

贸泽:
低压差稳压器 150mA,Sgl Output Low Noise,LDO Reg

艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO TLV71733PDQNR linear regulator manufactured by Texas Instruments. It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.215@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15Min A. Use this part at voltages between 1.7 V and 5.5 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Using a load regulation of 20mV and line regulation of 5mV is needed for a programmable DC power supply. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. The maximum dropout voltage is 0.35@150mA V. This voltage regulation device has an operating temperature range of -55 °C to 150 °C.

安富利:
LDO Regulator Pos 3.3V 0.15A 4-Pin X2SON T/R

Chip1Stop:
LDO Regulator Pos 3.3V 0.15A 4-Pin X2SON EP T/R

Verical:
LDO Regulator Pos 3.3V 0.15A 4-Pin X2SON EP T/R

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 150mA 4-X2SON 1x1
