电容 - 免费, 150毫安,低压差稳压器 Capacitor-Free, 150-mA, Low-Dropout Regulator
PMIC - 稳压器 - 线性 正 固定 输出 150mA 4-X2SON(1x1)
得捷:
IC REG LINEAR 1V 150MA 4X2SON
立创商城:

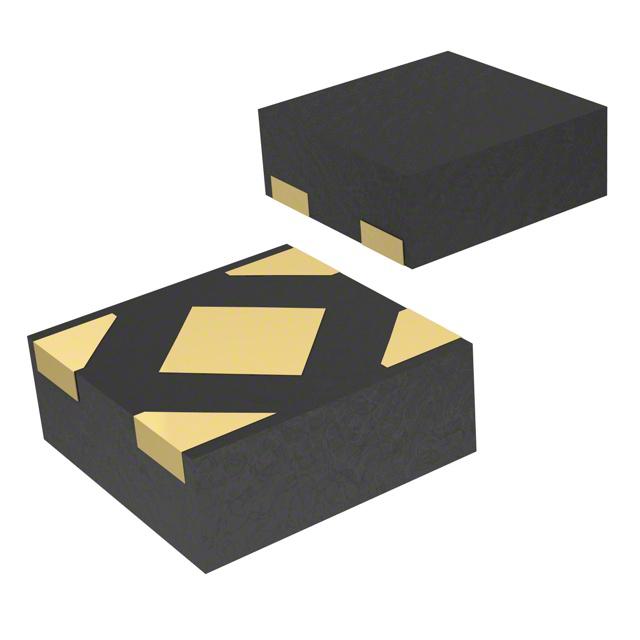

TLV71310PDQNT
德州仪器TI:
150-mA, capacitor-free low-dropout voltage regulator with active output discharge & enable
贸泽:
低压差稳压器 150mA LDO Reg w/ Foldback Crnt Limit
艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO TLV71310PDQNT linear regulator from Texas Instruments is perfect for you! It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.6@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. The best way to provide power to your application is by using this, which needs a voltage of at least 1.4 V and no higher than 5.5 V. With a fixed output that has a voltage of 1 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 30mV and line regulation of 5mV. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.9@150mA V.
安富利:
LDO Regulator Positive 1V 0.15A 4-Pin X2SON T/R
输出接口数 1
输出电压 1 V
输出电流 150 mA
静态电流 0.05 mA
输出电容类型 Ceramic
跌落电压 0.6V @150mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.4 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 4
封装 X2SON-4
封装 X2SON-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV71310PDQNT TI 德州仪器 | 当前型号 | 当前型号 |
TLV71310PDQNR 德州仪器 | 类似代替 | TLV71310PDQNT和TLV71310PDQNR的区别 |
