TL7757CPK 电压检测器电源IC 4.55V SOT-89 marking/标记 T7 上电复位发生器,互补复位输出
监控器 开路漏极或开路集电极 1 通道 SOT-89-3
得捷:
IC SUPERVISOR 1 CHANNEL SOT89-3
立创商城:
TL7757CPK
德州仪器TI:
Supply-voltage supervisor & precision voltage detector
贸泽:
监控电路 4.55V Monitr/Detectr
艾睿:
Does your printed circuit have sensitive components that need to be protected from voltage spikes? The supply voltage supervisory TL7757CPK voltage monitor IC from Texas Instruments is your solution. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a typical reset threshold voltage of 4.55 V, with a minimum of 4.43 V and a maximum of 4.67 V. This device has a minimum operating supply voltage of 1 V and a maximum of 7 V. This voltage supervisor IC has an operating temperature range of 0 °C to 70 °C.
安富利:
Volt Supervisor Supply 4-Pin3+Tab SOT-89 T/R
Chip1Stop:
Volt Supervisor Supply 4-Pin3+Tab SOT-89 T/R
Verical:
Processor Supervisor 4.55V 1 Active Low 4-Pin3+Tab SOT-89 T/R
Newark:
# TEXAS INSTRUMENTS TL7757CPK Voltage Supervisor, 1V-7V supply, 4.55V Threshold, 3.4 ms Delay, Active-Low Reset, SOT-89-3
DeviceMart:
IC 4.55V SUPPLY MONITOR SOT-89
电源电压DC 1.00V min
输出电流 30 mA
供电电流 2 mA
静态电流 1.40 mA
阈值电压 4.55 V
复位电压Min 4.43 V
复位电压Max 4.67 V
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压Max 7 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 3

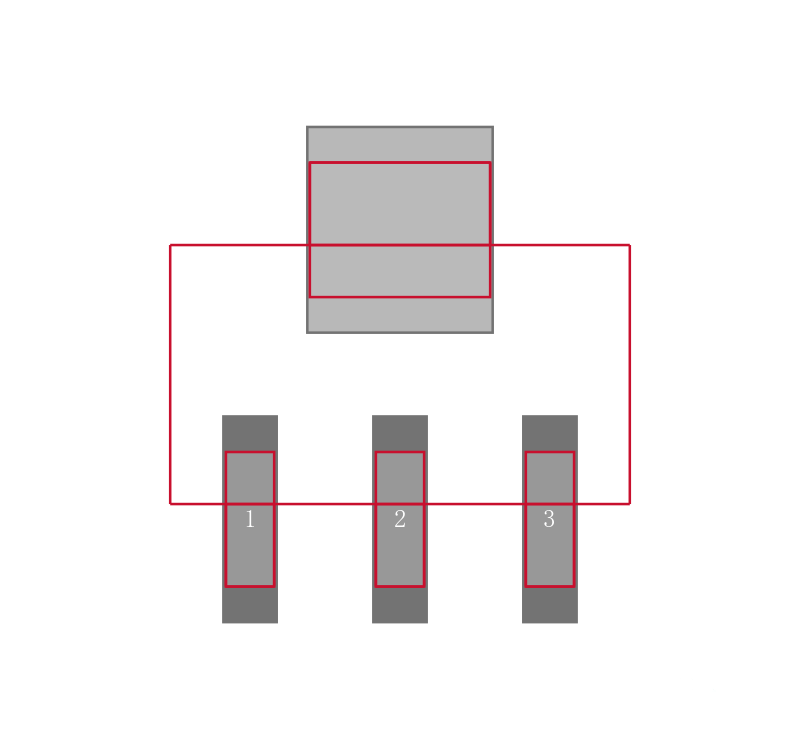

封装 SOT-89-3
长度 4.5 mm
宽度 2.5 mm
高度 1.5 mm
封装 SOT-89-3
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TL7757CPK TI 德州仪器 | 当前型号 | 当前型号 |
TL7757CPKG3 德州仪器 | 完全替代 | TL7757CPK和TL7757CPKG3的区别 |
TL7757IPK 德州仪器 | 类似代替 | TL7757CPK和TL7757IPK的区别 |
TL7757CDE4 德州仪器 | 类似代替 | TL7757CPK和TL7757CDE4的区别 |
