TLV5619CPW概述

2.7 V至5.5 V 12位并行数字 - 模拟与POWER DOWN转换器 2.7 V TO 5.5 V 12-BIT PARALLEL DIGITAL-TO-ANALOG CONVERTER WITH POWER DOWN

DESCRIPON

The TLV5619 is a 12-bit voltage output DAC with a microprocessor and TMS320 compatible parallel interface. The 12 data bits are double buffered so that the output can be updated asynchronously using the LDAC pin. During normal operation, the device dissi-pates 8 mW at a 5-V supply and 4.3 mW at a 3-V supply. The power consumption can be lowered to 50 nW by setting the DAC to power-down mode.

The output voltage is buffered by a ×2 gain rail-to-rail amplifier, which features a Class A output stage to improve stability and reduce settling time.

FEATURES

• Single Supply 2.7-V to 5.5-V Operation

• ± 0.4 LSB Differential Nonlinearity DNL,

  ±1.5 LSB Integral Nonlinearity INL

• 12-Bit Parallel Interface

• Compatible With TMS320 DSP

• Internal Power On Reset

• Settling Time 1 µs Typ

• Low Power Consumption:

   – 8 mW for 5-V Supply

   – 4.3 mW for 3-V Supply

• Reference Input Buffers

• Voltage Output

• Monotonic Over Temperature

• Asynchronous Update

APPLICATIONS

• Battery Powered Test Instruments

• Digital Offset and Gain Adjustment

• Battery Operated/Remote Industrial Controls

• Machine and Motion Control Devices

• Cordless and Wireless Telephones

• Speech Synthesis

• Communication Modulators

• Arbitrary Waveform Generation

TLV5619CPW中文资料参数规格
技术参数

电源电压DC 5.00V max

输出接口数 1

供电电流 1.60 mA

通道数 1

位数 12

耗散功率 8 mW

采样率 480 ksps

功耗 4.30 mW

过温保护 No

工作温度Max 70 ℃

工作温度Min 0 ℃

耗散功率Max 8 mW

数模转换数DAC 1

电源电压 2.7V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 20

封装 TSSOP-20

外形尺寸

封装 TSSOP-20

物理参数

工作温度 0℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册

TLV5619CPW引脚图与封装图

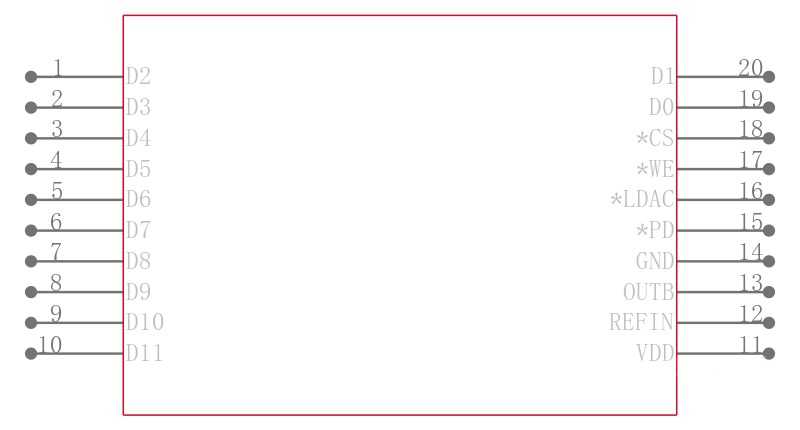

TLV5619CPW引脚图
TLV5619CPW封装图
TLV5619CPW封装焊盘图
在线购买TLV5619CPW
型号: TLV5619CPW
制造商: TI 德州仪器
描述:2.7 V至5.5 V 12位并行数字 - 模拟与POWER DOWN转换器 2.7 V TO 5.5 V 12-BIT PARALLEL DIGITAL-TO-ANALOG CONVERTER WITH POWER DOWN
