200毫安,低IQ ,低压降稳压器用于便携式设备 200-mA, Low-IQ, Low-Dropout Regulator for Portable Devices
PMIC - 稳压器 - 线性 正 固定 输出 200mA 6-WSON(1.5x1.5)
得捷:
IC REG LINEAR 3V 200MA 6WSON
立创商城:
TLV70030DSER
德州仪器TI:
200-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO TLV70030DSER linear regulator from Texas Instruments. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 555 mW. This voltage regulation device&s;s single output can produce a current up to 0.2 A. This will operate at a minimum voltage of 2 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. Users like the load regulation of 1mVTyp and line regulation of 1mVTyp. Its maximum power dissipation is 555 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 3V 0.2A 6-Pin WSON T/R
Chip1Stop:
Single Channel LDO 200mA, Low IQ, Low Dropout Regulator for Portables LDO Regulator Pos 3V 0.2A 6-Pin WSON T/R
Verical:
LDO Regulator Pos 3V 0.2A 6-Pin WSON T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3V 200mA 6-WSON 1.5x1.5
输出接口数 1
输出电压 3 V
输出电流 200 mA
供电电流 55µA ~ 270µA
耗散功率 0.555 W
静态电流 0.031 mA
输出电容类型 Ceramic
跌落电压 0.175mV @0.2A
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2 V
输出电压Min 3 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 555 mW
精度 ±2 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 6

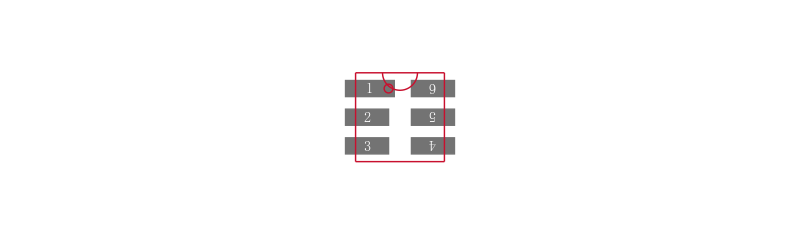

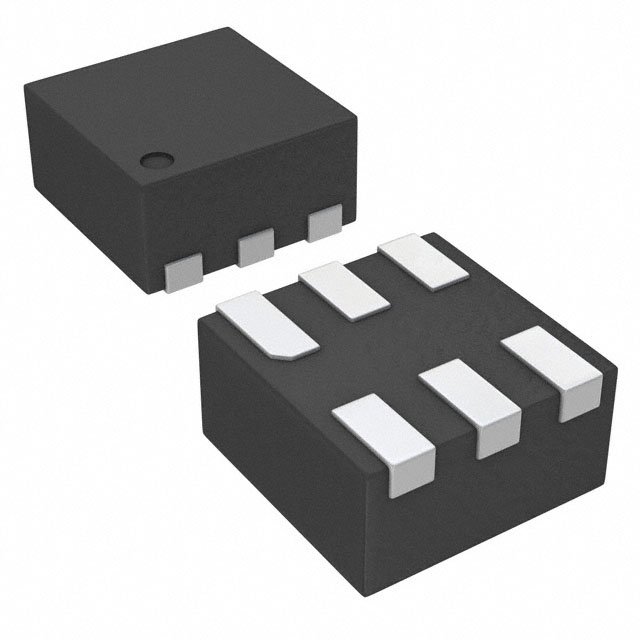

封装 WFDFN-6
封装 WFDFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV70030DSER TI 德州仪器 | 当前型号 | 当前型号 |
TLV70030DSET 德州仪器 | 类似代替 | TLV70030DSER和TLV70030DSET的区别 |
