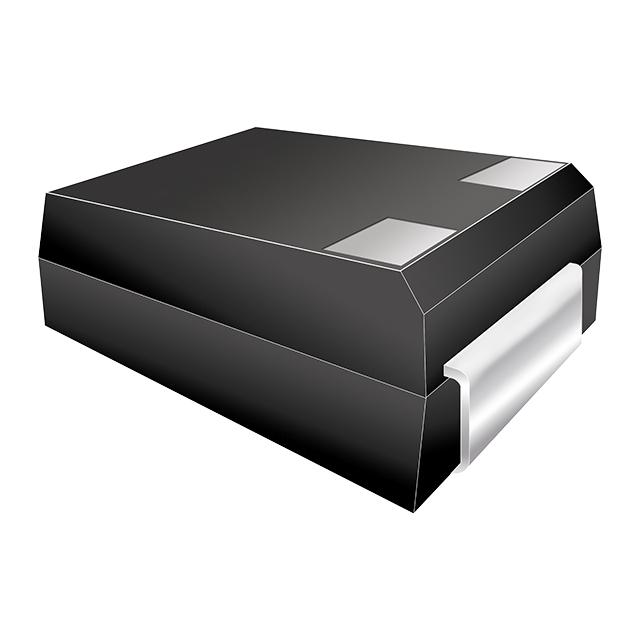

T520B127M006ATE035

KEMET  T520B127M006ATE035  表面贴装钽电容, T520系列, 120 µF, 1411 [3528 公制], 0.035 ohm, 6.3 V

120 µF 模制 聚合物钽器 6.3 V 1411（3528 公制） 35 毫欧 @ 100kHz

欧时:
Capacitor 120uF 6.3V 35mohm

得捷:
CAP TANT POLY 120UF 6.3V 1411

艾睿:
Because of its high permittivity dielectric layer, this T520B127M006ATE035 polymer electrolyte from Kemet is best-suited to pass low-frequency signals into various small products. It can withstand a voltage of 6.3 VDC. It has 2 terminals. Its capacitance value is 120uF. This product is 3.5 mm long, 1.9 mm tall and 2.8 mm deep. Its leakage current is 75.6 μA. This polymer electrolyte has a minimum operating temperature of -55 °C and a maximum of 105 °C.

Chip1Stop:
Cap Tant Solid 120uF 6.3V B CASE 20% 3.5 X 2.8 X 1.9mm SMD 3528-21 0.035 Ohm 105 C T/R

TME:
Capacitor: tantalum-polymer; 120uF; 6.3VDC; Case: B; 1411; ESR:35mΩ

Verical:
Cap Tant Polymer 120uF 6.3VDC B CASE 20% 3.5 X 2.8 X 1.9mm SMD 3528-21 0.035 Ohm 105C T/R

Newark:
# KEMET  T520B127M006ATE035  CAP, TANT, 120UF, 6.3V, CASE B
