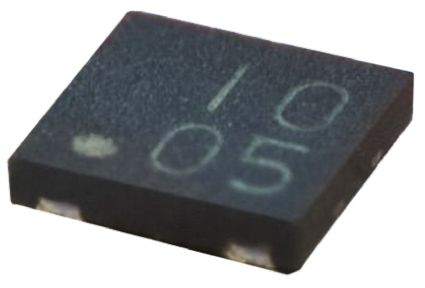

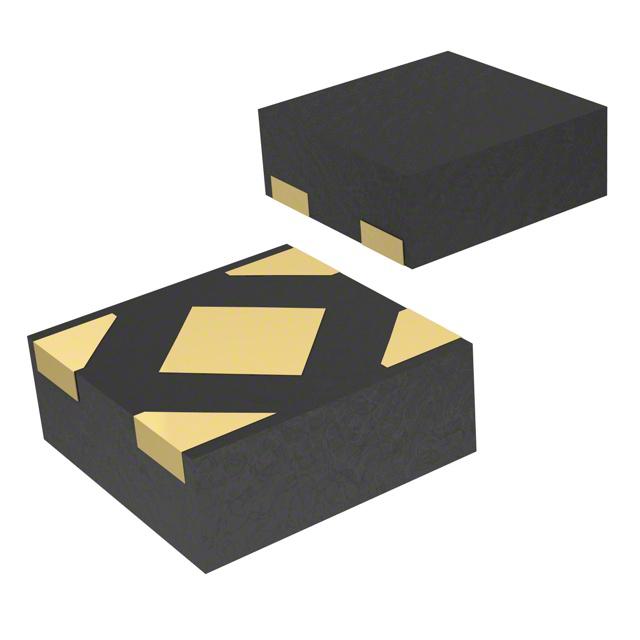

LDO(低压降)线性电压调节器,200mA,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,200mA,Texas Instruments
得捷:
IC REG LINEAR 3V 200MA 4X2SON
立创商城:
TLV70730DQNT
德州仪器TI:
200-mA, low-IQ, low-dropout voltage regulator with enable
欧时:
Texas Instruments TLV70730DQNT LDO 稳压器, 3 V输出, 200mA最大输出, ±1.5%精确度, 2 → 5.5 V输入
贸泽:
低压差稳压器 200mA,Low-IQ,Low- Noise,LDO Reg
e络盟:
TEXAS INSTRUMENTS TLV70730DQNT 固定电压稳压器, LDO, 2V至5.5V, 220mV压差, 3V输出, 200mA输出, X2SON-4
艾睿:
Never worry about components not turning off and on due to lack of voltage with this LDO TLV70730DQNT linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.045@30mA|0.22@150mA V. This device has a maximum power dissipation of 400 mW. It has an overall accuracy of ±0.5Typ %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. By only needing an input voltage of 2 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. By operating at a load regulation of 10mVTyp and line regulation of 1mVTyp you can provide a constant voltage at your output. Its maximum power dissipation is 400 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its polarity is positive. The maximum dropout voltage is 0.27@150mA V.
安富利:
LDO Regulator Pos 3V 0.2A 4-Pin X2SON T/R
Chip1Stop:
LDO Regulator Pos 3V 0.2A 4-Pin X2SON EP T/R
Verical:
LDO Regulator Pos 3V 0.2A 4-Pin X2SON EP T/R
DeviceMart:
IC REG LDO 3V .2A 4X2SON
额定功率 400 mW
输出接口数 1
输出电压 3 V
输出电流 200 mA
针脚数 4
耗散功率 400 W
静态电流 25 µA
输出电容类型 Ceramic
跌落电压 220 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2 V
输出电流Max 200 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 400 mW
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 4
封装 XDFN-4
长度 1.05 mm
宽度 1.05 mm
高度 0.35 mm
封装 XDFN-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV70730DQNT TI 德州仪器 | 当前型号 | 当前型号 |
TLV70730PDQNT 德州仪器 | 类似代替 | TLV70730DQNT和TLV70730PDQNT的区别 |
TLV71730PDQNR 德州仪器 | 类似代替 | TLV70730DQNT和TLV71730PDQNR的区别 |
TLV71730PDQNT 德州仪器 | 类似代替 | TLV70730DQNT和TLV71730PDQNT的区别 |
