TCK102G,LF

Power Switch ICs - Power Distribution 1A Slew Rate Driver 50mOHm 5V 800mW

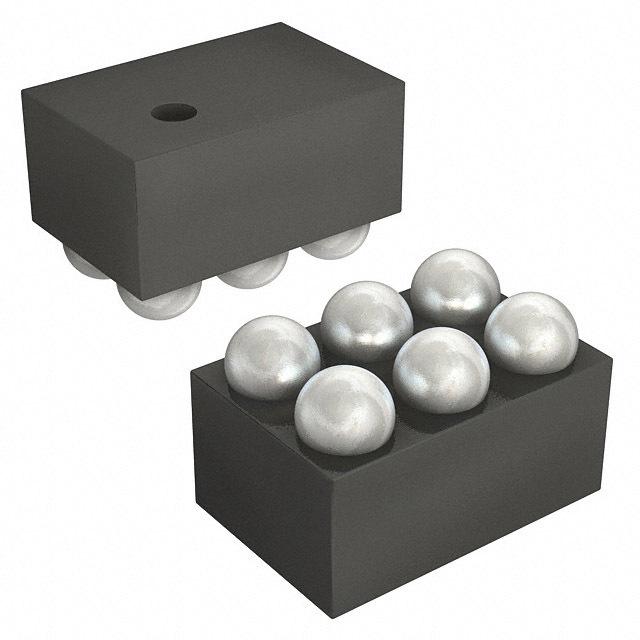

* Wide input voltage operation: Vin = 1.1 to 5.5 V * Low ON resistance :Ron = 50 mΩ typ. at Vin = 5.0 V, 500 mARon = 55 mΩ typ. at Vin = 3.3 V, 500 mARon = 75 mΩ typ. at Vin = 1.8 V, 500 mARon = 120 mΩ typ. at Vin = 1.2 V, 500 mA * Low Quiescent Current: Iq = 8 μA typ. at Vin = Vct = 5.5 V, Iout = 0 mA * Low standby current: IqOFF = 0.07 μA typ. at OFF state * Inrush current reduction circuit * Thermal Shutdown function * Pull down connection between CONTROL and GND * Ultra small package : WCSP6B 0.8mm x 1.2mm, t: 0.64mmmax
