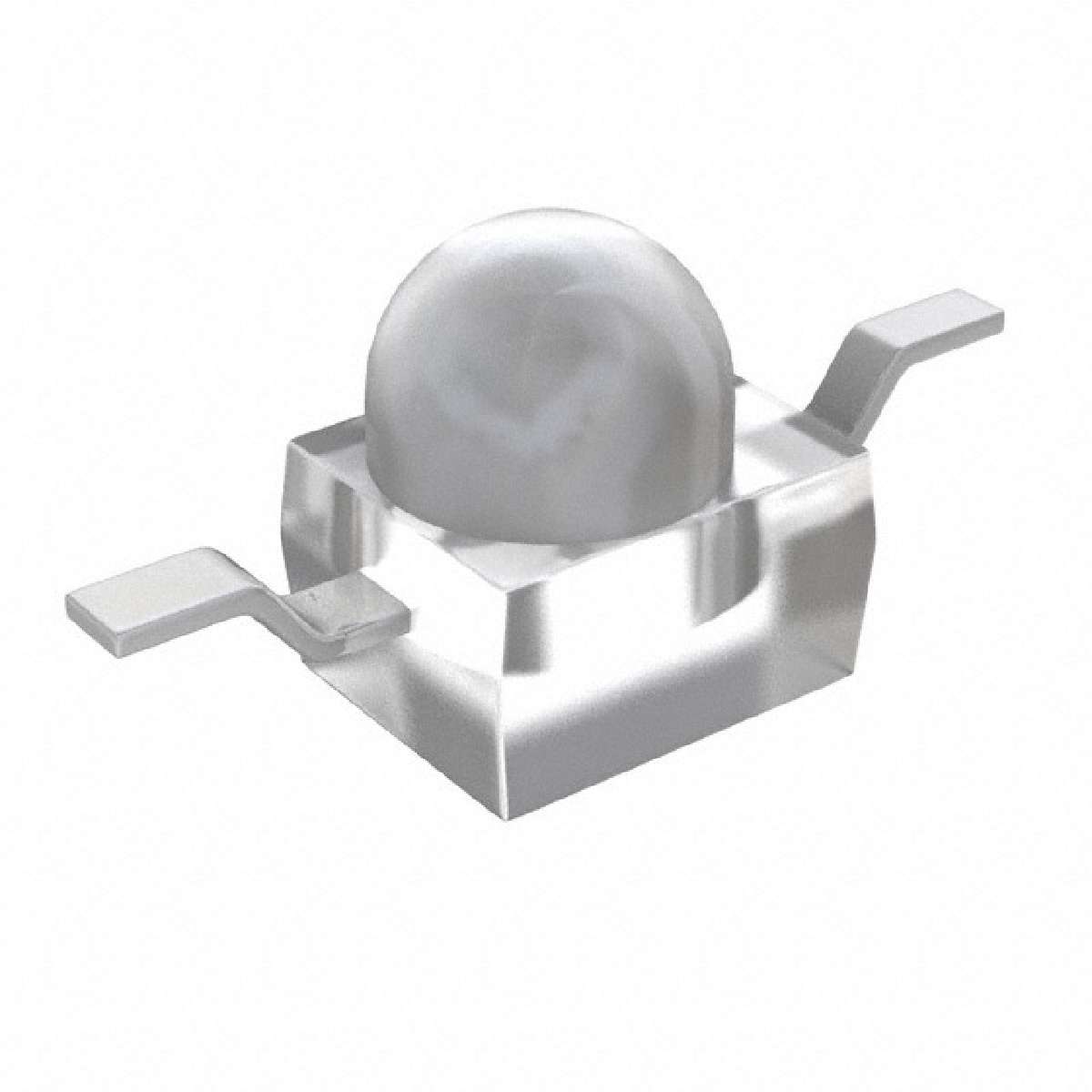

Vishay TSMF1000/20/30 Series IR Emitting DiodesThe TSMF10x0 series, from Vishay Semiconductors, are surface mount SMT Infrared IR emitting diodes. These IR LEDs have a peak wavelength of 890nm. The TSMF10x0 family are available with a range of different lead types including gull-wing, reverse gull-wing and yoke. With the use of double hetero DH technology, the TSMF10x0 IR LEDs offer high radiant power and high speed output. They have a moulded clear, untintined plastic dome lens. Suitable applications for this family of IR LEDs include; IrDA compatible data transmission, miniature light barrier, photointerrupters, optical switch, control and drive circuits and shaft encoders. Features of the TSMF10x0 IR LEDs: TSMF1000 - Reverse gull-wing TSMF1020 - Gull-wing TSMF1030 - Yoke lead Dimensions: 2.5 x 2 x 2.7 mm Peak wavelength Low forward voltage ### 红外线 IR 发射器，Vishay
The is a 890nm Infrared Emitting Diode in GaAlAs double hetero DH technology. It is moulded in clear, untinted plastic packages with lens for surface mounting SMD.
- .
- High speed
- .
- High radiant power
- .
- ϕ = ±17° Angle of half intensity
- .
- Low forward voltage
- .
- Suitable for high pulse current operation
- .
- Versatile terminal configurations
额定电压DC 2.40 V
工作电压 1.3V ~ 1.5V
额定功率 190 mW
上升/下降时间 0.03 µs
针脚数 2
正向电压 1.3 V
波长 890 nm
视角 34°
峰值波长 890 nm
耗散功率 180 mW
上升时间 30 ns
测试电流 100 mA
正向电流 20 mA
正向电压Max 1.3 V
正向电流Max 100 mA
下降时间 30 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 180 mW
电源电压 1.3 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 2.5 mm
宽度 2 mm
高度 2.7 mm
封装 SMD-2
颜色 Transparent
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signalling, Automation & Process Control, Communications & Networking, Industrial, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
