TPS71933-33DRVTG4

双通道， 200mA输出，低噪声，高PSRR低压降线性稳压器 Dual, 200mA Output, Low Noise, High PSRR Low-Dropout Linear Regulators

DESCRIPON

The TPS718xx and TPS719xx families of low-dropout LDO regulators offer a high power-supply rejection ratio PSRR, low noise, fast start-up, and excellent line and load transient responses while consuming a very low 90µA typical at no load ground current with both LDOs enabled. The TPS719xx also provides an active pulldown circuit to quickly discharge output loads.

FEATURES

• Dual, 200mA High-Performance LDOs

• Low Total Quiescent Current: 90µA with Both LDOs Enabled

• Low Noise: 70µVRMS/V

• Active Output Pulldown TPS719xx

• Independent Enables for Each LDO

• PSRR: 65dB at 1kHz, 45dB at 1MHz

• Available in Multiple Fixed-Output Voltage Combinations from 0.9V to 3.6V Using Innovative Factory EEPROM Programming

• Fast Start-Up Time: 160µs

• Over-Current, Over-Temperature and Under-Voltage Protection

• Low Dropout: 230mV at 200mA

• Stable with 1µF Ceramic Output Capacitor

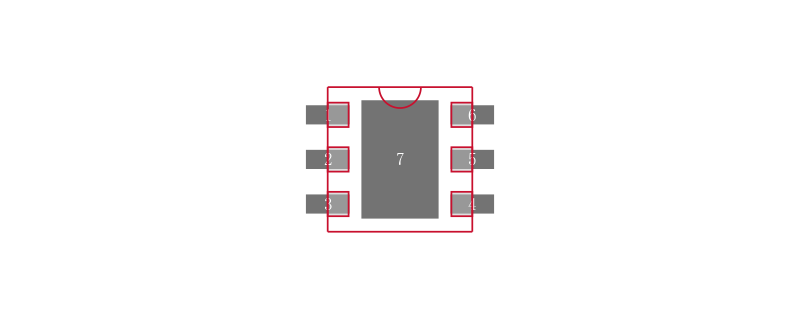

• Available in 2mm × 2mm SON-6 Package

APPLICATIONS

• Digital Cameras

• Cellular Camera Phones

• Wireless LAN, Bluetooth®

• Handheld Products
