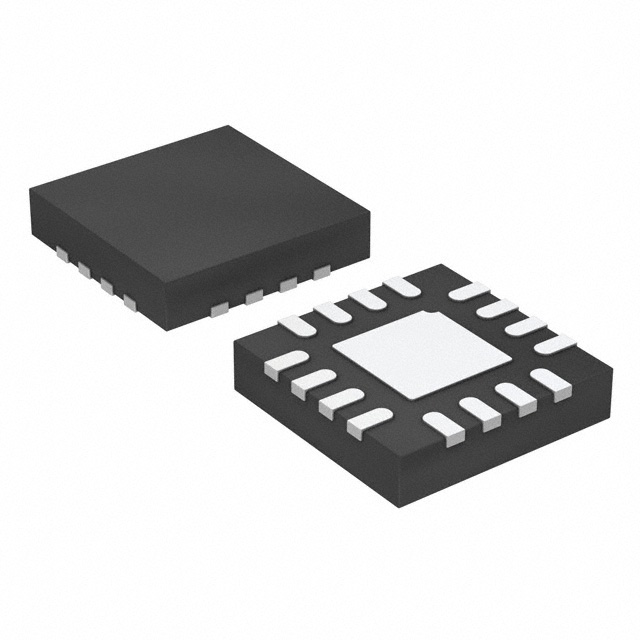

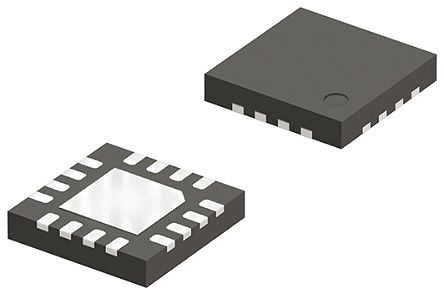

TEXAS INSTRUMENTS TPS55330RTET 直流-直流开关升压, 反激, SEPIC稳压器, 可调, 2.9V-16V输入, 2.9V-22V输出, 5A输出, WQFN-16
升压,反激,SEPIC 开关稳压器 IC 正,可提供隔离 可调式 2.9V 1 输出 5.25A(开关) 16-WFQFN 裸露焊盘
立创商城:
升降压型 升压型 Vin=2.9V~16V Vout=2.9V~22V 5.25A
德州仪器TI:
Integrated 5-A 24-V Wide Input Range Boost/SEPIC/Flyback DC-DC Regulator
欧时:
Texas Instruments TPS55330RTET 直流-直流转换器, 回扫、SEPIC、升压, 2.9 → 16 V输入
得捷:
IC REG MULTI CONFG ADJ 16WQFN
e络盟:
TEXAS INSTRUMENTS TPS55330RTET 直流-直流开关升压, 反激, SEPIC稳压器, 可调, 2.9V-16V输入, 2.9V-22V输出, 5A输出, WQFN-16
艾睿:
Adjust the voltage level of your devices with this step up TPS55330RTET DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 5 A. With a small input voltage of 2.9 V and a max of 16 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 2.9 to 22 V, this is power management at its best. Its switching regulator has a frequency of 100 to 1200 kHz. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The converter is ideal for operating at an isolation of Isolated. This converter has a minimum operating temperature of -40 °C and a maximum of 150 °C.
安富利:
Conv DC-DC Single Step Up 2.9V to 16V 16-Pin WQFN T/R
Chip1Stop:
Conv DC-DC Single Step Up 2.9V to 16V 16-Pin WQFN EP T/R
Verical:
Conv DC-DC 2.9V to 16V Step Up Single-Out 2.9V to 22V 5A 16-Pin WQFN EP T/R
Newark:
# TEXAS INSTRUMENTS TPS55330RTET DC-DC Switching Boost, Flyback, SEPIC Regulator, Adjustable, 2.9V-16Vin, 2.9V-22Vout, 5Aout, WQFN-16
DeviceMart:
IC REG BST FLYBK SEPIC 16WQFN
输出接口数 1
输出电压 2.9V ~ 22V
输出电流 5 A
针脚数 16
静态电流 500 µA
调节输出数 1
开关频率 1.2 MHz
拓扑结构 Boost
输入电压Max 16 V
输入电压Min 2.9 V
输出电压Max 22 V
输出电压Min 2.9 V
输出电流Max 5 A
工作温度Max 150 ℃
工作温度Min -40 ℃
输入电压 16 V
安装方式 Surface Mount
引脚数 16
封装 WQFN-16
长度 3.15 mm
宽度 3.15 mm
高度 0.75 mm
封装 WQFN-16
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 通信与网络, 计算机和计算机周边, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS55330RTET TI 德州仪器 | 当前型号 | 当前型号 |
TPS55340RTER 德州仪器 | 类似代替 | TPS55330RTET和TPS55340RTER的区别 |
TPS55330RTER 德州仪器 | 类似代替 | TPS55330RTET和TPS55330RTER的区别 |
TPS55340PWPR 德州仪器 | 功能相似 | TPS55330RTET和TPS55340PWPR的区别 |
