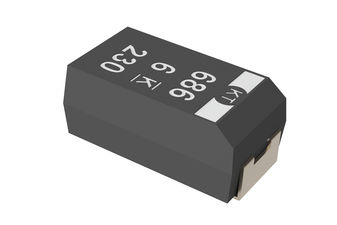

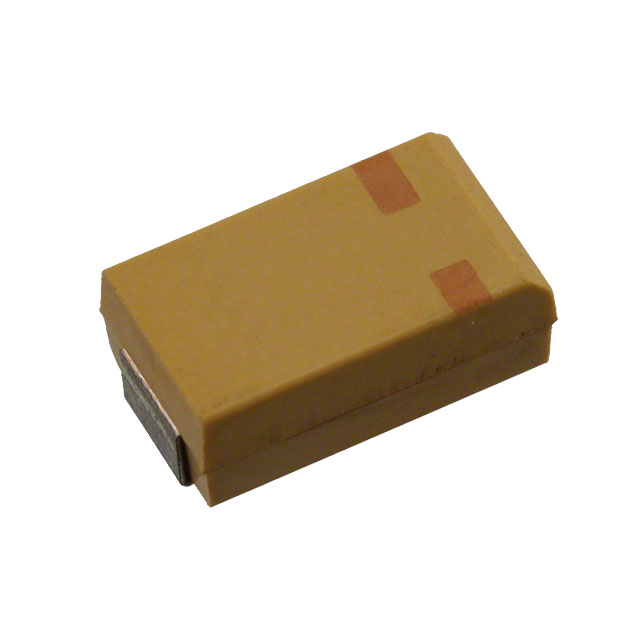

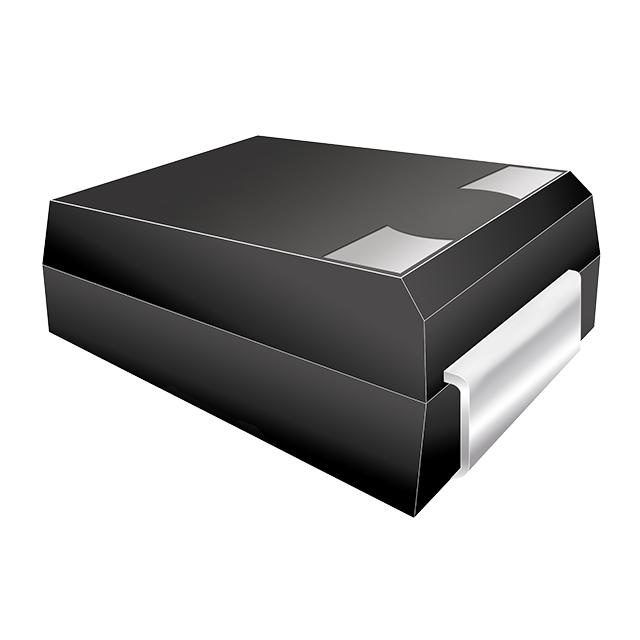

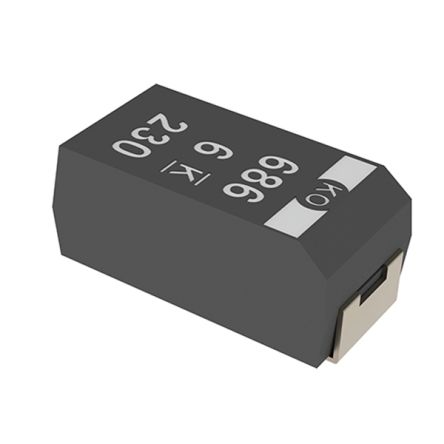

KEMET T525D476M016ATE035 表面贴装钽电容, T525系列, 47 µF, 2917 [7343 公制], 0.035 ohm, 16 V
With this organic polymer electrolyte from Kemet you"re getting a versatile, low cost capacitor that is perfect for maintaining robust, low impedance power delivery networks. It can withstand a voltage of 16 VDC. It has 2 terminals. This polymer electrolyte has a minimum operating temperature of -55 °C and a maximum of 125 °C. Its capacitance value is 47uF. This product is 7.3 mm long, 2.8 mm tall and 4.3 mm deep. Its leakage current is 75.2 μA.
额定电压DC 16.0 V
电容 47 µF
等效串联电阻ESR 0.035 Ω
容差 ±20 %
产品系列 T525
纹波电流 0.7 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
引脚数 2

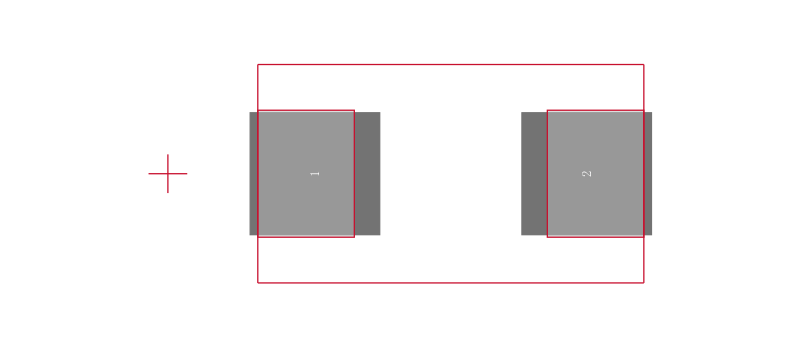

封装公制 7343-31
封装 7343

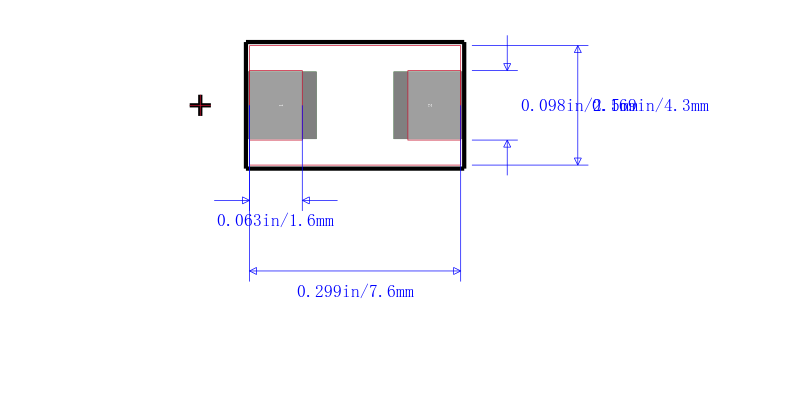

长度 7.3 mm
宽度 4.3 mm
高度 2.8 mm
封装公制 7343-31
封装 7343
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
T525D476M016ATE035 KEMET Corporation 基美 | 当前型号 | 当前型号 |
T525D476M016AHE035 基美 | 完全替代 | T525D476M016ATE035和T525D476M016AHE035的区别 |
T520D476M016ATE035 基美 | 类似代替 | T525D476M016ATE035和T520D476M016ATE035的区别 |
TCJY476M016R0070 艾维克斯 | 功能相似 | T525D476M016ATE035和TCJY476M016R0070的区别 |
