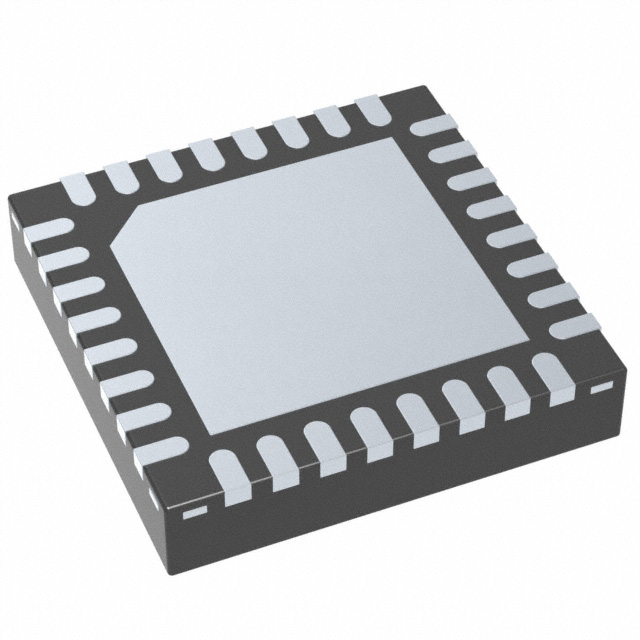

具有 200mA/100mA 双 LDO 的 18V 输入、3A/1A/1A 三路同步降压转换器 32-VQFN -40 to 85
The TPS65262 is a monolithic triple synchronous step-down buck converter with 3-A/1-A/1-A output current. A wide 4.5- to 18-V input supply voltage range encompasses the most intermediate bus voltage operating off 5-, 9-, 12-, or 15-V power bus. The converter, with constant frequency peak current mode, is designed to simplify its application while giving designers options to optimize the system according to targeted applications. The device operates at 600-kHz fixed switching frequency. The loop compensations for buck 2 and buck3 have been integrated for less external components. The 180° out-of-phase operation between buck1 and buck2, 3 buck2 and buck3 run in phase minimizes the input filter requirements. At light load, the device automatically operates in PSM, which provides high efficiency by reducing switching losses.
Two low dropout voltage linear regulators LDO are also built in TPS65262 with input voltage range 1.3 to 18 V, continuous output current 200 mA/100 mA, independent enable and adjustable output voltage.
The TPS65262 features an automatic power sequence with driving MODE pin to high and configuring EN1, EN2, and EN3 pins.
The device features overvoltage protection, overcurrent and short-circuit protection, and overtemperature protection. A power good pin asserts when any output voltages are out of regulation.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS65262RHBT TI 德州仪器 | 当前型号 | 当前型号 |
TPS65262RHBR 德州仪器 | 完全替代 | TPS65262RHBT和TPS65262RHBR的区别 |
