T 3378 501

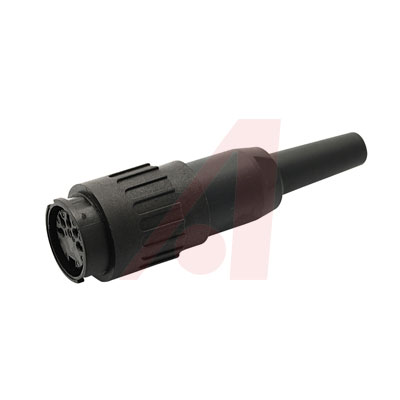

AMPHENOL TUCHEL  T 3378 501  圆形连接器, C091B系列, 插座, 5 触点, 母, 焊接, 电缆安装

20-26 AWG , Thermoplastic Dielectric , Silver Plating, Female Cable Connector

UL Recognized. Rated IP40. Contact configurations are above. Plastic housing. Bayonet locking mating.

.

* Cable Outlet:** 6 mm. Solder termination. Internal metal strain-relief with half-shell construction and snap-in latching. Complete EMI shielding in fully mated and locked position. ** Voltage Rating:** 300 V; 5S — 100 V; 7 DIN, 8, 12 and 14 contact configurations — 150 V. ** Current Rating:** 5 A; 12 and 14 contact configurations — 3 A. Connectors for 6 mm cable are listed. Connectors for 6.5 mm and 8 mm cable are also available. ** Note:** All plastic connectors upon request.

Locking system bayonet, termination solder.
