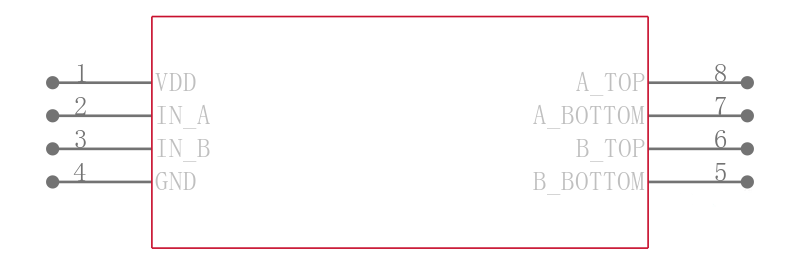

TC4405MJA

1.5A双漏极开路MOSFET驱动器 1.5A Dual Open-Drain MOSFET Drivers

General Description:

The TC4404/TC4405 are CMOS buffer-drivers constructed with complementary MOS outputs, where the drains of the totem-pole output have been left separated so that individual connections can be made to the pull-up and pull-down sections of the output.

Features:

• Independently Programmable Rise and Fall Times

• Low Output Impedance – 7Typ.

• High Speed tR, tF– <30 nsec with 1000 pF Load

• Short Delay Times – <30 nsec

• Wide Operating Range:

\- 4.5V to 18V

• Latch-Up Protected: Will Withstand > 500 mA Reverse Current Either Polarity

• Input Withstands Negative Swings Up to -5V

Applications:

• Motor Controls

• Driving Bipolar Transistors

• Driver for Non-overlapping Totem Poles

• Reach-Up/Reach-Down Driver
