MPPT 开发套件200-300V 直流输入高达 500W 400V 直流输出 1:1 谐振 LLC，用于隔离板载 USB JTAG 仿真 完整文档的开源硬件和软件 2 相直流/直流升压，用于最大功率点跟踪 ### 注**注意：在高电压和电流下操作该设备时可能导致危险的电击。 请确保在采购和操作之前了解并遵循所有必要的安全预防措施。**### C2000™ 太阳能反相器开发套件Texas Instruments 太阳能应用开发，C2000™ 高电压准备就绪的 隔离反相器套件或低电压仿真套件。

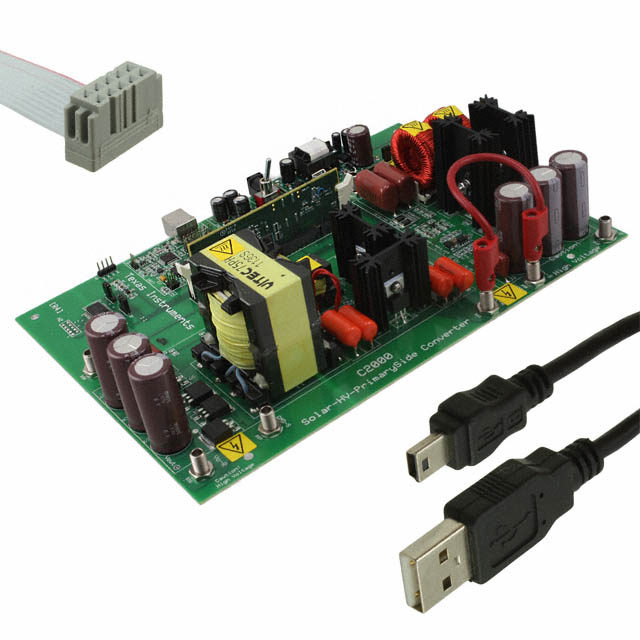

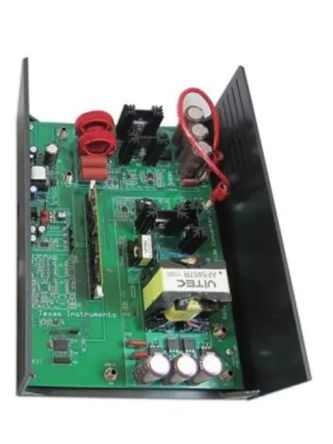

The is a high voltage isolated solar MPPT developers kit based on Piccolo TMS320F28035 microcontroller. The C2000 high voltage MPPT kit is intended to jump start engineers in developing solar based inverter and converter applications. Based on the Piccolo F28035, this evaluation board features a two phase interleaved boost stage for maximum power point tracking, and a half bridge resonant LLC isolation stage, both digitally controlled from a single MCU. Included are incremental conductance and perturb and observe algorithms, allowing designers the flexibility to test different options for maximum power point tracking. Featuring a 400Vdc output voltage, this evaluation board directly complements the TMSHV1PHINVKIT providing a complete DC to AC solar inverter system. Built in USB JTAG emulation eliminates need for external hardware and a quick start graphical user interface is included as well. All hardware and software is fully documented and open source for design use.
- .
- Dual C2000 processor transformer isolated design
- .
- 200Vdc to 300Vdc input up to 500Watts
- .
- 400Vdc output
- .
- Two phase DC to DC boost for maximum power point tracking
- .
- 1:1 resonant LLC for isolation
- .
- Onboard USB JTAG emulation
- .
- Fully documented open source hardware and software
- .
- Ethernet connectivity enabled
- .
- Full bridge single phase AC Inverter supports 120Vac to 220Vac output
- .
- Phase locked loop controlled grid tie and anti islanding functions
该设备带高电压与电流，会造成电击伤害
