TEXAS INSTRUMENTS TPS40425RHAT 直流/直流控制器, PM总线接口, 4.5V至20V, 2路输出, 同步降压, 1.5MHz, VQFN-40
The is a PMBus synchronous Driverless Buck Controller operates in non-smart power mode in factory default setting and it can operate in smart power mode after PMBus programming and power reboot. It can be configured as dual-output or 2-phase. It is also stackable up to 4 phases to support load current as high as 120A. Interleaved phase shift for 2-, 3-, or 4-phases reduce the input and output ripples therefore reducing input and output capacitance. The wide input voltage range can support 5 and 12V intermediate supply buses. The 0.5% reference voltage satisfies the need of precision voltage to the modern ASICs. Using the PMBus standard, the TPS40425 device can program reference voltage, fault limit, UVLO threshold, soft-start time and turn-on and turn-off delay. In addition, the device implements an accurate measurement system to monitor the output voltages, currents and temperatures for individual.
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
电源电压DC 4.50V min
输出接口数 2
输出电压 0.6V ~ 5V
输出电流 40 A
针脚数 40
静态电流 18.0 mA
调节输出数 2
开关频率 1.5 MHz
拓扑结构 Buck
输入电压Max 20 V
输入电压Min 4.5 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 20 V
电源电压Min 4.5 V
输入电压 4.5V ~ 20V
引脚数 40

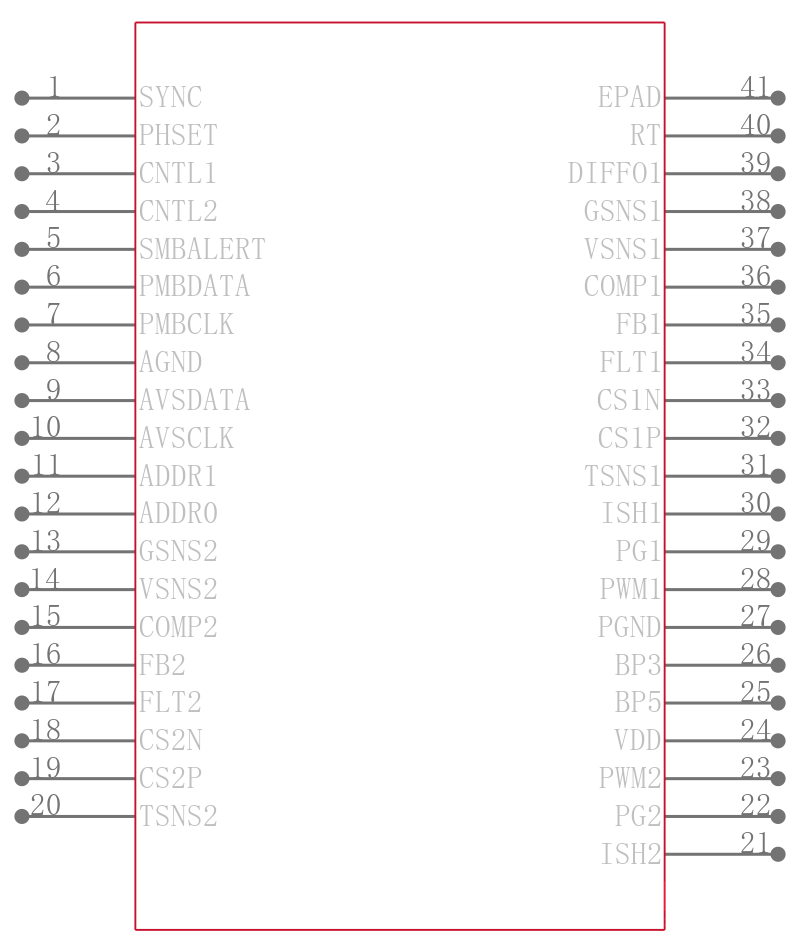

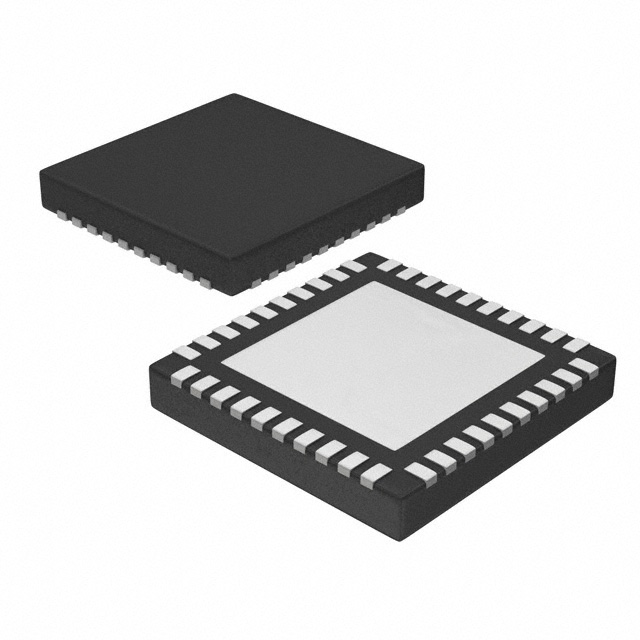

封装 VQFN-40
封装 VQFN-40
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS40425RHAT TI 德州仪器 | 当前型号 | 当前型号 |
TPS40425RHAR 德州仪器 | 类似代替 | TPS40425RHAT和TPS40425RHAR的区别 |
