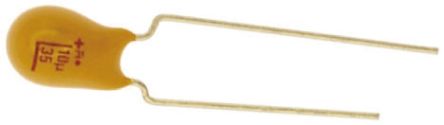

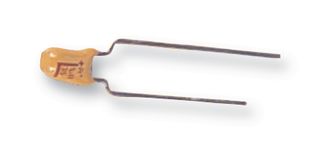

TAP107M010CCS

AVX  TAP107M010CCS  钽电容, 树脂浸包, TAP系列, 100 µF, ± 20%, 10 V, 径向引线, 5 mm

TAP 系列

一系列固体钽器，提供各种尺寸、样式和额定值。系列产品包含浸涂树脂径向电容器额定值 85°C （降额电压条件下 125°C）。15 种外壳尺寸以及宽电容和工作电压范围意味着 TAP 适合几乎所有应用。

**特点和优势：**

用阻燃涂层制成

极强温度稳定性

低漏泄电流和低阻抗

电容容差 | 20 %

---|---

工作温度 | -55 至 + 85°C

引脚间距 | 5.08mm

主要直径 | 0.5 mm

欧时:
AVX TAP 系列 100μF ±20% 通孔 钽电容器 TAP107M010CCS, 10V dc, 1Ω ESR, +125°C

e络盟:
钽电容, 树脂浸包, 100 µF, 10 V, TAP系列, ± 20%, 径向引线, 5 mm

艾睿:
The low leakage current characteristic of this TAP107M010CCS solid tantalum capacitor from AVX makes it suitable for sample and hold circuit applications. Users like its outside bend wire form. It can withstand a voltage of 10 VDC. Its leakage current is 8 μA. This part has a pitch of 5 mm. This solid capacitor has a maximum operating temperature of 125 °C. The TAP107M010CCS solid capacitor has a radial termination style. This product is 14Max mm tall with a diameter of 8.5Max mm. Its capacitance value is 100uF. It has a tolerance of 20%.

Allied Electronics:
100uF THT Solid MnO2 Tantalum Electrolytic Capacitor, 10 V dc +/-20%, TAP Series

安富利:
Cap Tant Solid 100uF 10V 20% 8.5 X 14mm Radial 5mm 1 Ohm 125°C Bulk

Verical:
Cap Tant Solid 100uF 10V 20% 8.5 X 14mm Radial 5mm 1 Ohm 125C Bulk

Newark:
# AVX  TAP107M010CCS  Tantalum Capacitor, Resin Dipped, 100 µF, 10 V, TAP Series, ± 20%, Radial Leaded
