低压差稳压器 LOW-DROPOUT VOLTAGE REGULATORS
description
The TPS71Hxx integrated circuits are a family of micropower low-dropout LDO voltage regulators. An order of magnitude reduction in dropout voltage and quiescent current over conventional LDO performance is achieved by replacing the typical pnp pass transistor with a PMOS device.
Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low maximum of 32 mV at an output current of 100 mA for the TPS71H50 and is directly proportional to the output current see Figure 1. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and remains independent of output loading typically 285 µA over the full range of output current, 0 mA to 500 mA.
• Qualified for Automotive Applications
• ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model C = 200 pF, R = 0
• Available in 5-V, 4.85-V, and 3.3-V Fixed-Output and Adjustable Versions
• Very Low-Dropout Voltage . . . Maximum of 32 mV at IO = 100 mA TPS71H50
• Very Low Quiescent Current − Independent of Load . . . 285 µA Typ
• Extremely Low Sleep-State Current 0.5 µA Max
• 2% Tolerance Over Specified Conditions For Fixed-Output Versions
• Output Current Range of 0 mA to 500 mA
• TSSOP Package Option Offers Reduced Component Height for Space-Critical Applications
• Thermally Enhanced Surface-Mount Package
• Power-Good PG Status Output
输出接口数 1
输出电压 3.3 V
输出电流 500 mA
静态电流 280 µA
输出电容类型 Tantalum
跌落电压 0.235V @500mA
调节输出数 1
输入电压Max 10 V
输入电压Min 3.77 V
耗散功率Max 700 mW
输入电压 3.77V ~ 10V
安装方式 Surface Mount
引脚数 20

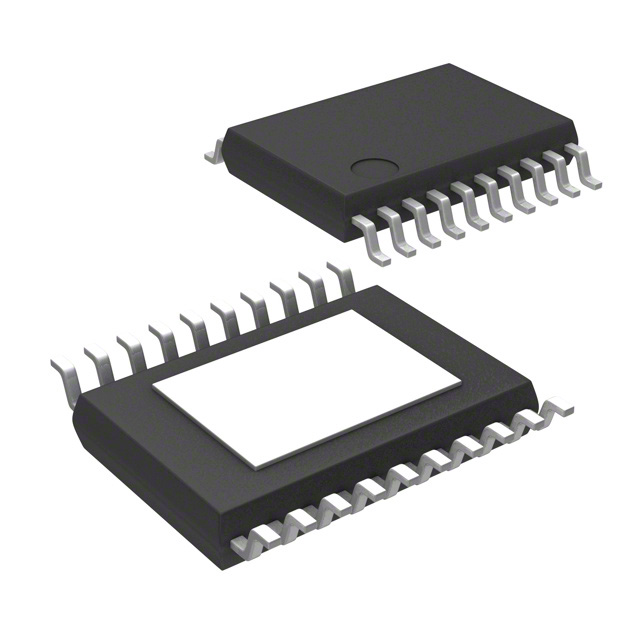

封装 TSSOP-20
封装 TSSOP-20
工作温度 -55℃ ~ 150℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS71H33QPWPRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TPS75333QPWPRQ1 德州仪器 | 类似代替 | TPS71H33QPWPRQ1和TPS75333QPWPRQ1的区别 |
