10Ω ±5% 35W ±100ppm/℃

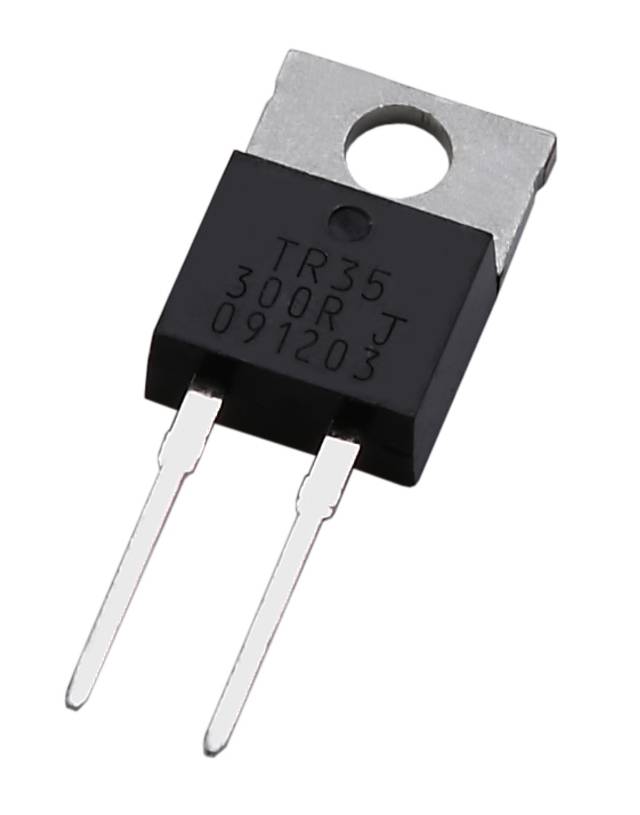

10 Ohms ±5% 35W Through Hole Resistor TO-220-2 Moisture Resistant, Non-Inductive Thick Film
得捷:
RES 10 OHM 5% 35W TO220
艾睿:

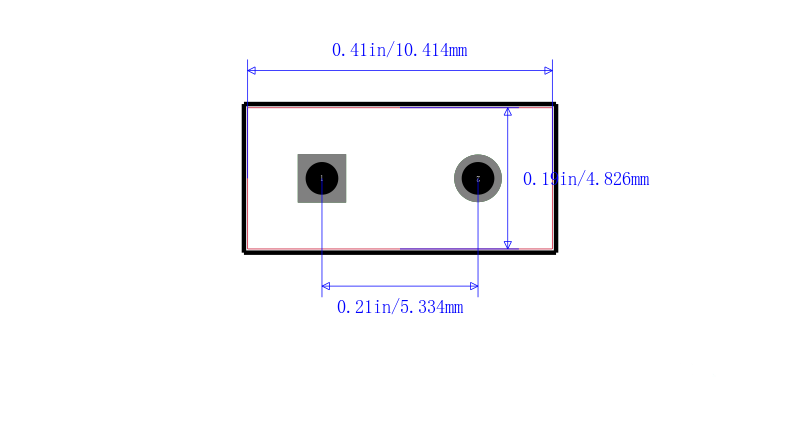

If you are designing a basic printed circuit that requires some resistance between components, the TR35JBD10R0 fixed single through-hole resistor from SEI Stackpole Electronics can offer you a solution. This product has a resistance value of 10 Ohm. This dependable part has a power rating of 2.5|35 W. Its temperature coefficient is ±100 ppm/°C. This product comes packaged in bulk, so the parts will be stored loosely. This device utilizes power film technology. This part has an operating temperature of -65 to 175 °C. This product&s;s terminal pitch is 5.08 mm. This product is 10.16 mm long, 14.75 mm tall and 4.44 mm deep. The TR35JBD10R0 part has a radial termination style. It has a tolerance of 5%.
Chip1Stop:
Res Power Film 10 Ohm 5% 35W 100ppm/ C Molded TO-220 RDL Bulk
Verical:
Res Power Film 10 Ohm 5% 2.5/35W ±100ppm/C Molded TO-220 RDL Bulk
