TCHIP011

MICROCHIP  TCHIP011  评估板, Fubarino Mini ChipKit, 48MHZ PIC32 CPU, 33输入/输出引脚, 兼容Arduino

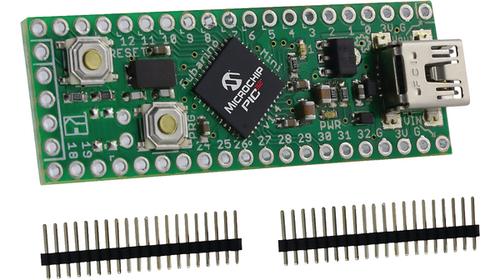

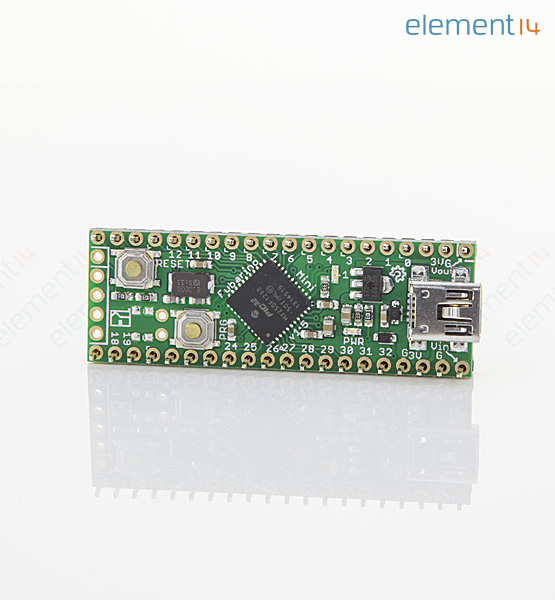

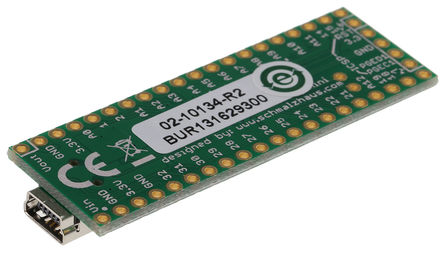

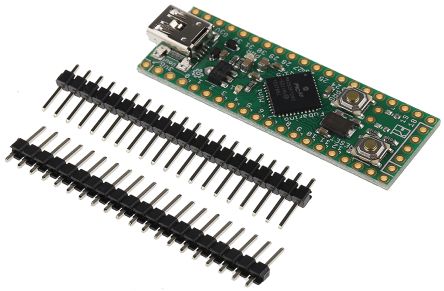

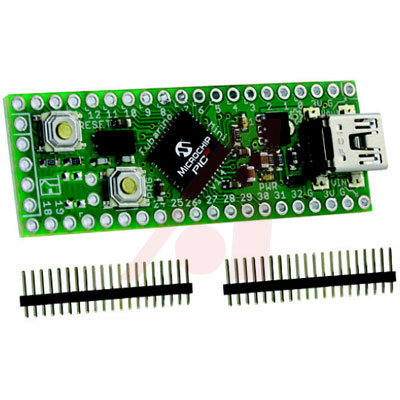

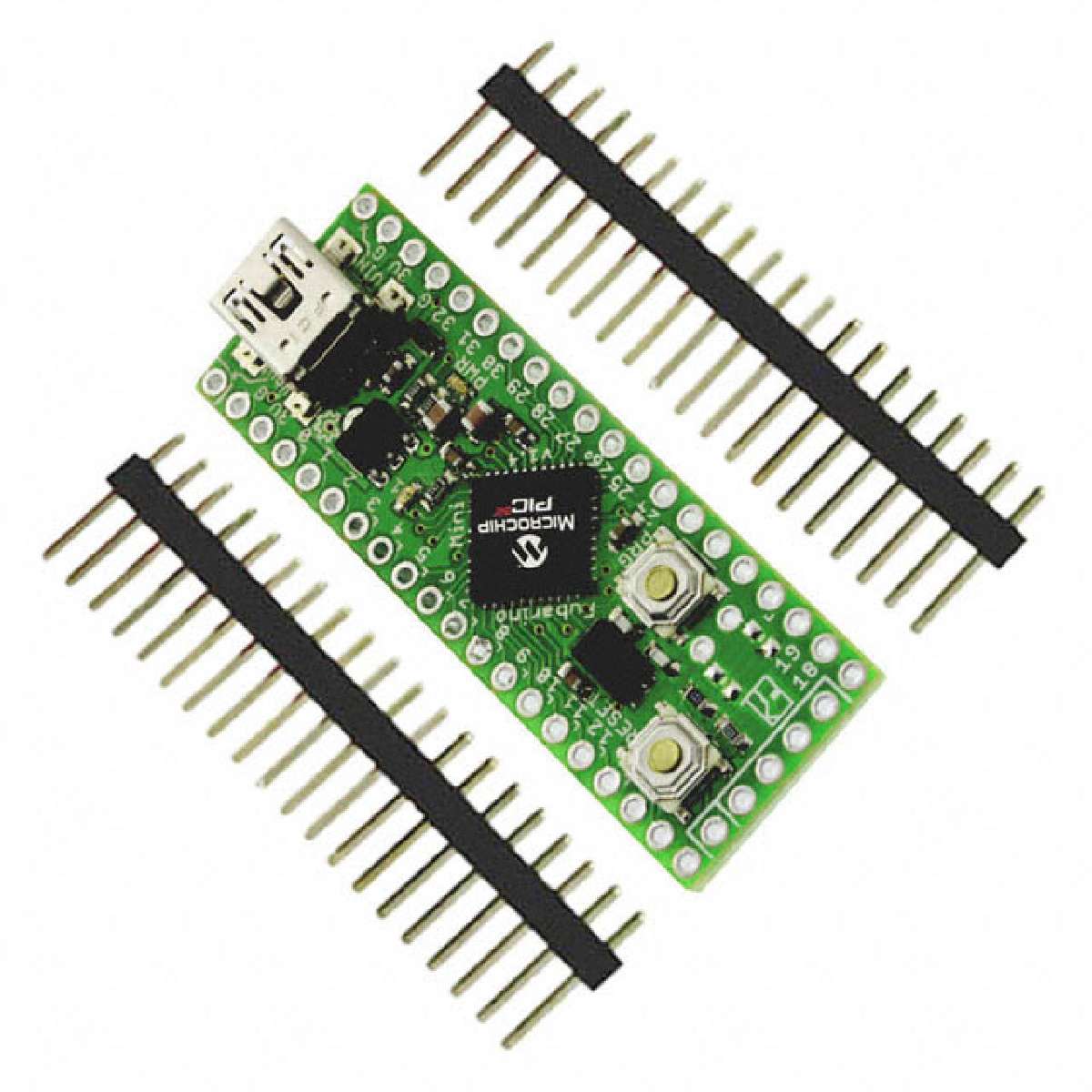

T芯片011是一个Fubarino Mini small微控制器电路板 that 使用一个powerful PIC32微控制器. It is 芯片KITTM/MPIDE 兼容原型和can run the same sketches that run on an Arduino. It 设计to have all I/O pins on either side of the电路板 in a traditional DIP pattern so that it can easily be plugged into a breadboard. It has a USB 连接器 用于power, programming,和a connection to a PC.

.

PIC32MX250F128D-50I/ML微控制器, which包括128KB闪存 and 32K RAM

.

由来自MPIDE的开发目标支持

.

Max 33 输入/输出 引脚 通常为27

.

32KHz水晶触点层

.

CPU频率48MHz

.

USB连接器用于供电,编程, 及连接至PC

.

USB引导装载程序在工厂预编程

.

独立的ICSP连接器
