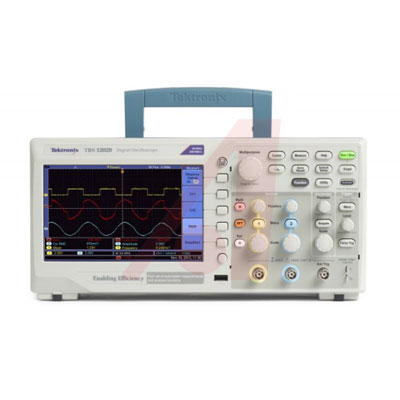

TBS1032B

TEKTRONIX  TBS1032B  示波器, 紧凑型设计, TBS1000B Series, 2x 模拟, 30 MHz, 500 MSPS, 2.5 kpts

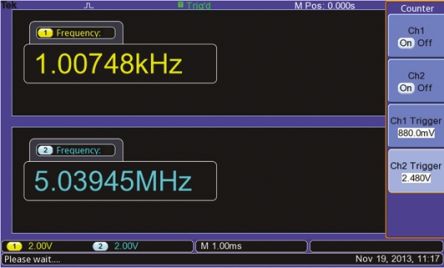

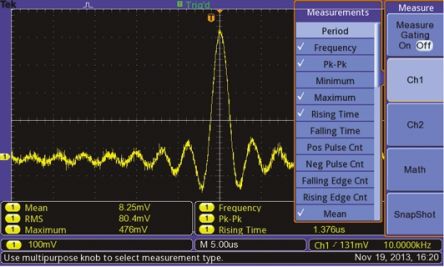

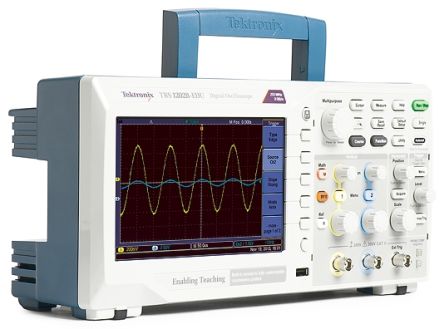

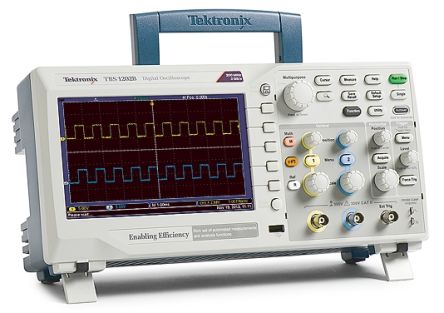

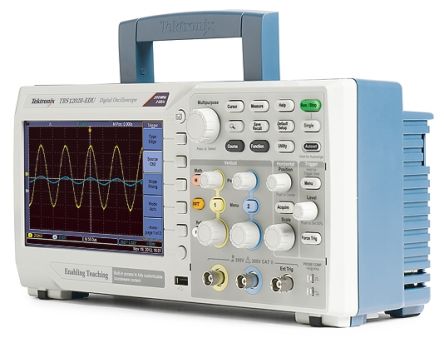

The from is a TBS1000B series digital storage oscilloscope with 30MHz bandwidth and 2 analogue channels. The TBS1032B digital storage oscilloscope provides affordable performance in a compact design. It features USB connectivity, 34 automated measurements, limit testing, data logging, frequency counter, TrendPlot and a context sensitive help menu. The TBS1000B has a 7inch high resolution TFT display for a clear view of signals and critical on screen information. The interface is easy to use, provides quick access to all of the oscilloscope functions and includes a high resolution "Pan & Zoom" feature enabling user to see even more signal details of up to 10 times normal resolution.

.

500MS/s sample rate on all channels

.

2.5k point record length on all channels

.

Advanced triggers including pulse and line selectable video triggers

.

Dual window FFT, simultaneously monitors both the time and frequency domains

.

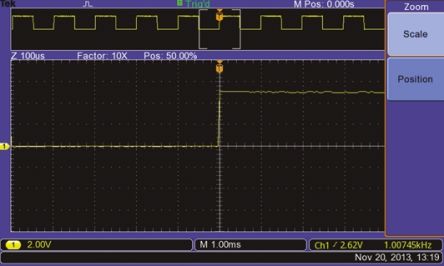

Zoom function, Automated, extended data logging feature, Autoset and auto-ranging functions

.

USB 2.0 host port on the front panel for quick and easy data storage

.

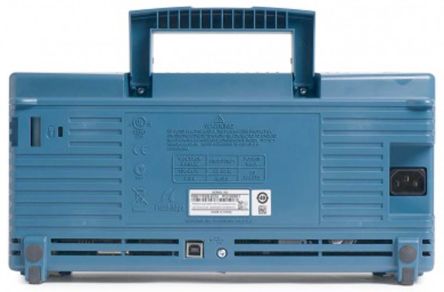

USB 2.0 device port on rear panel for easy connection to a PC

.

2mV to 5V/div on all models with calibrated fine adjustment

.

Conforms to UL61010-1:2004, CSA22.2 No. 61010-1:2004, EN61010-1:2001, IEC61010-1:2001 standards

.

Dimension is 158.0mm x 326.3mm x 124.2mm and weight is 2Kg
