TSW-118-07-S-D

Conn Unshrouded Header HDR 36POS 2.54mm Solder ST Thru-Hole

针座 通孔 36 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 36POS 2.54MM

欧时:
Classic PCB HDR Strips 0.100"

艾睿:

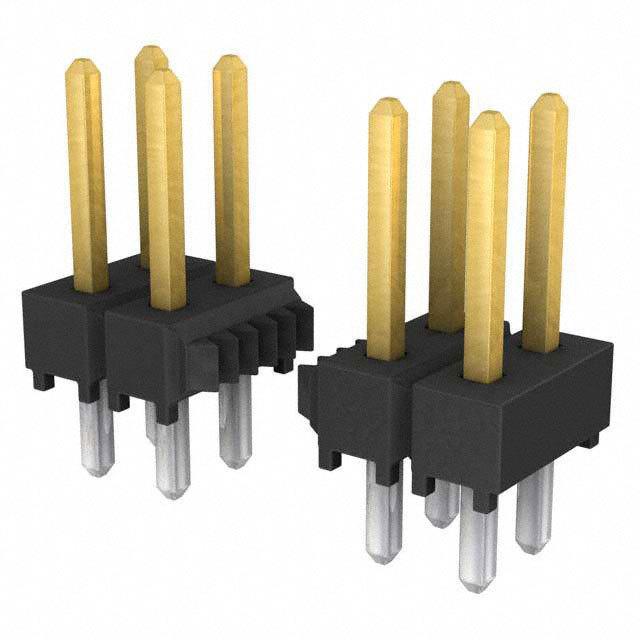

Use this unshrouded TSW-118-07-S-D header connector from Samtec where IDC ribbon cables are used. This HDR connector&s;s 36 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. TSW-118-07-S-D is housed in black polyester. This product is 45.72 mm long, 8.38 mm tall and 5.08 mm deep. This connector has an operating temperature of -55 to 125 °C.

Newark:
# SAMTEC  TSW-118-07-S-D  .025 Sq. Terminal Strips
