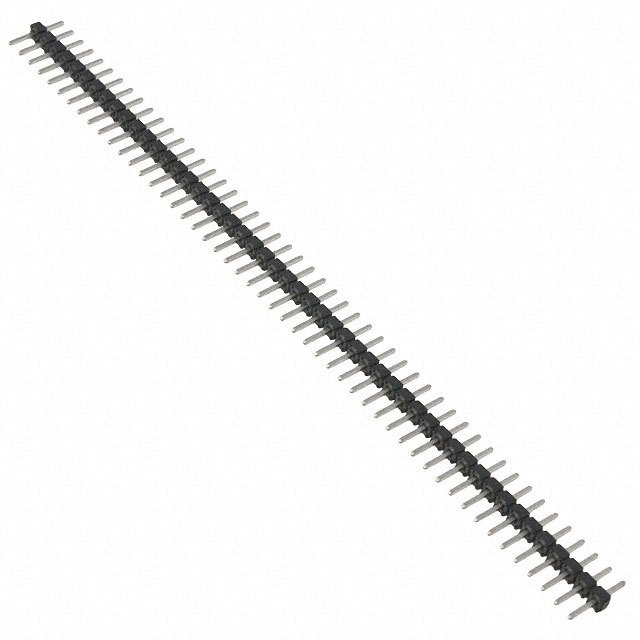

TMM-150-01-G-S

Conn Unshrouded Header HDR 50POS 2mm Solder ST Thru-Hole

针座 通孔 50 位置 0.079"（2.00mm）

欧时:
HEADER TH 50POS 2MM

得捷:
CONN HEADER VERT 50POS 2MM

艾睿:
Use this unshrouded TMM-150-01-G-S connector from Samtec when board-to-board interconnects is required. This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 500 VAC. It has a header type gender. This is a 1-row connector. Its pitch is 2 mm. This device has a maximum current rating of 5.5 A/contact. This connector has an operating temperature of -55 to 125 °C. This product is 100 mm long, 4.7 mm tall and 1.97 mm deep. It uses the solder termination method. TMM-150-01-G-S is housed in black liquid crystal polymer.

Verical:
Conn Unshrouded Header HDR 50 POS 2mm Solder ST Top Entry Thru-Hole Bulk

Newark:
# SAMTEC  TMM-150-01-G-S  2mm TERMINAL STRIP
