PANASONIC ELECTRIC WORKS TQ2-L2-3V 信号继电器, TQ系列, DPDT, 3 VDC, 1 A, 通孔安装, 闭锁双线圈
The TQ series 2-pole 5mm surface-mount Signal Relay with high sensitivity of 140mW 2-form-C single side stable type. By using the highly efficient polar magnetic circuit "seesaw balance mechanism", a nominal operating power of 140mW minimum operating power of 79mW has been achieved. The high-efficiency magnetic circuits ensure low magnetic flux leakage. Because characteristics are little changed by proximity mounting, high-density mounting is possible.
- .
- Flat compact size
- .
- The use of gold-clad twin crossbar contacts ensures high contact reliability
- .
- DIL terminal array enables use of IC sockets
- .
- Low thermal electromotive force
- .
- Latching types also available
- .
- Self-clinching terminal also available
额定电压DC 110 V
额定电压AC 125 V
绝缘电阻 1000 MΩ

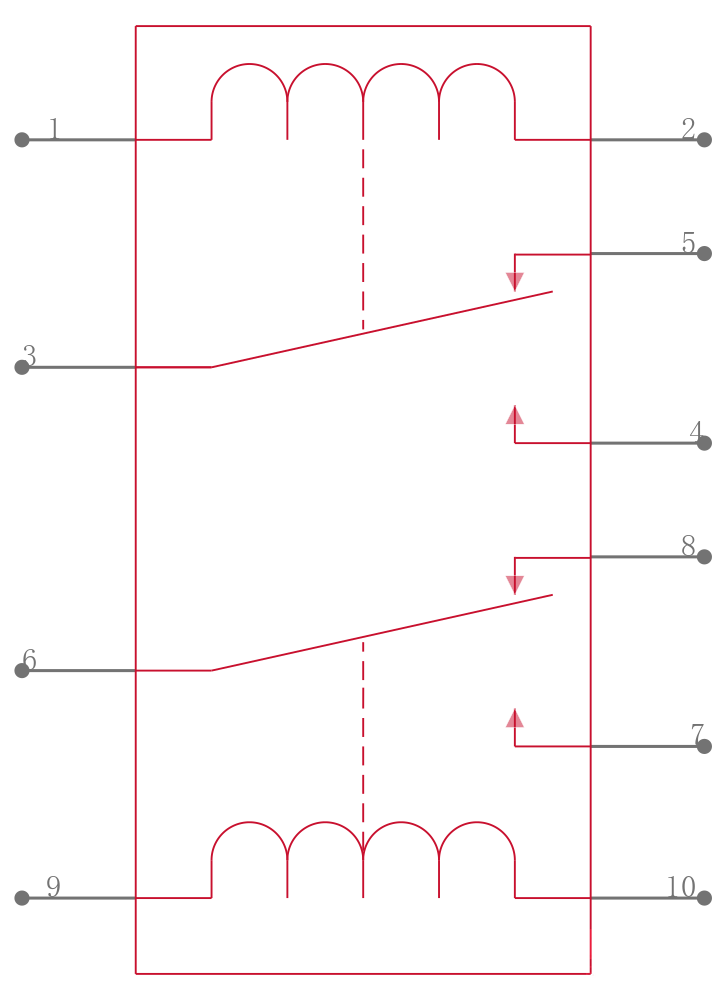

触点类型 DPDT
功耗 200 mW
触点额定电流 1 A
线圈电压 3 VDC
线圈电流 66.7 mA
线圈功率DC 200 mW
线圈电阻 45 Ω
载流 1.00 A
额定电流Max 1 A
线圈电压DC 3 V
额定功率Max 30W, 62.5VA
开关电流Max 1 A
工作温度Max 70 ℃
工作温度Min -40 ℃
接触电阻Max 50 mΩ

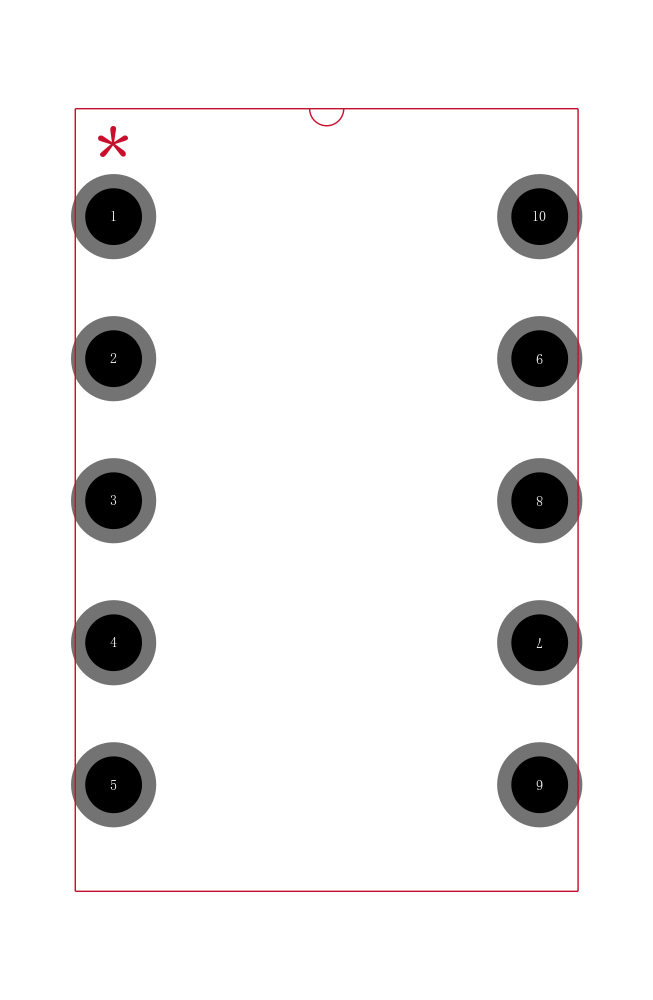

安装方式 Through Hole
引脚数 10
封装 DIP

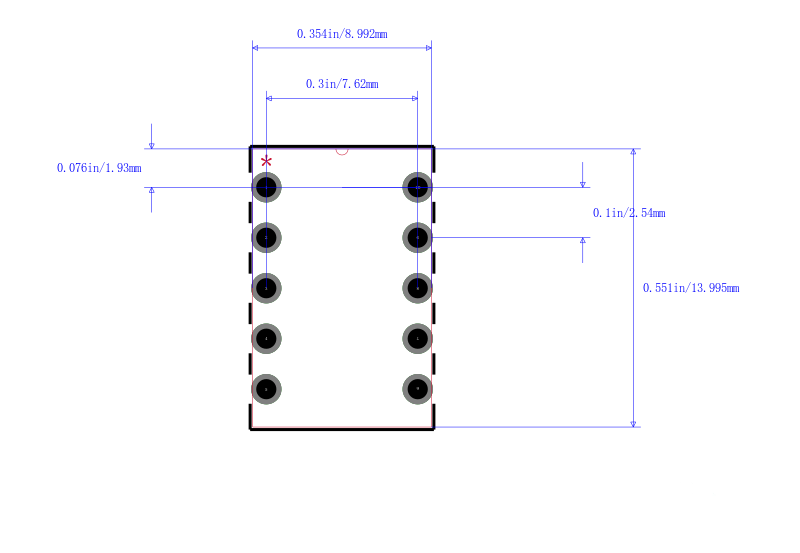

长度 14 mm
宽度 5 mm
高度 5 mm
封装 DIP
触点材质 Silver, Gold Clad
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 信号处理, Industrial, Signal Processing, Communications & Networking, Test & Measurement, 测试与测量, 通信与网络, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536490050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TQ2-L2-3V Panasonic 松下 | 当前型号 | 当前型号 |
