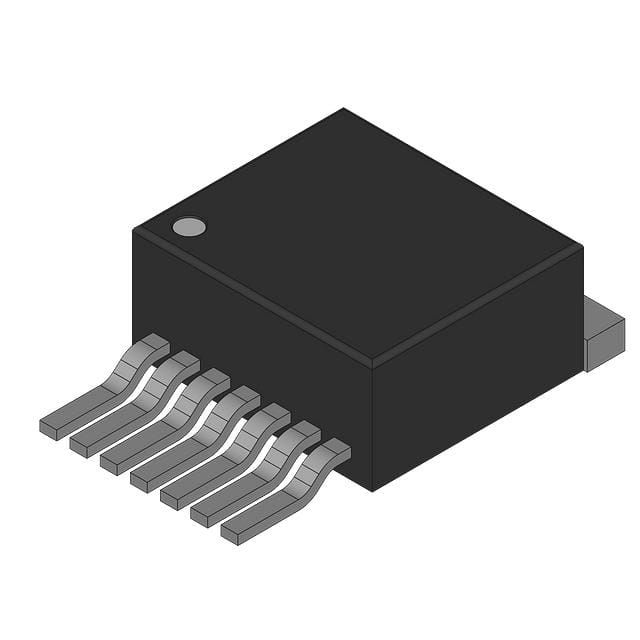

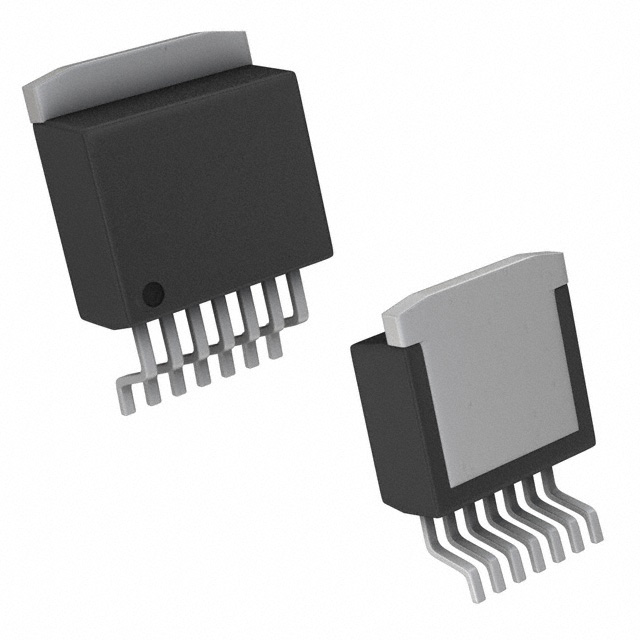

TLS850D0TAV50ATMA1

固定LDO稳压器, AEC-Q100, 3 V至40 V, 175 mV压差, 5 V/500 mA输出, TO-263-7

The TLS850D0TA is a high performance very low dropout linear voltage regulator for 5V. With an input voltage range of 3V to 40V and very low quiescent of only 40µA, these regulators are perfectly suitable for automotive or any other supply systems connected to the battery permanently. The TLS850D0TA provides an output voltage accuracy of 2% and a maximum output current up to 500mA.

TLS850D0TA V50, SP001380600

.

Wide input voltage range from 3.0V to 40V

.

Fixed output voltage 5V

.

Output voltage precision ±2%

.

Output current capability up to 500mA

.

Ultra low current consumption typ. 40µA

.

Very low dropout voltage typ. 70mV@100mA

.

Adjustable reset threshold down to 2.50V

.

Enable, undervoltage reset, overtemperature shutdown

.

AEC qualified
