UWX1C470MCL1GB

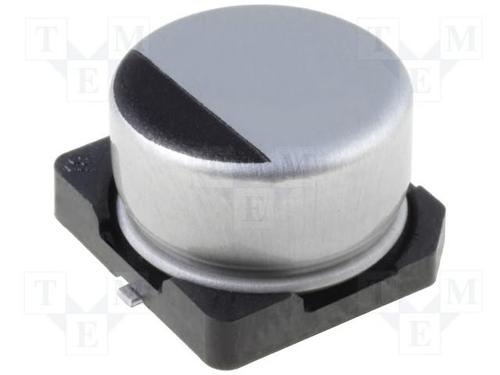

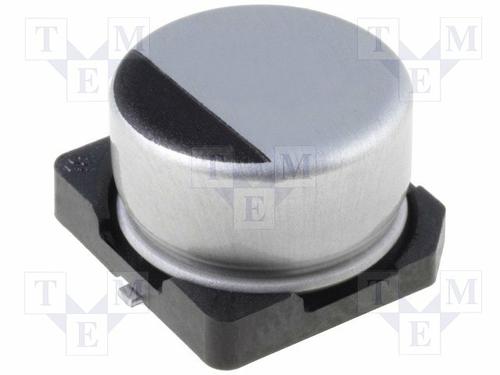

NICHICON  UWX1C470MCL1GB  铝电解电容, 表面贴装, WX系列, 47 µF, 16 V, Radial Can - SMD, 6.3 mm

WX 系列

WX 铝电解器系列是 5.5mmL 芯片类型

设计用于表面安装到高密度 PC 板上

适用于自动安装机器，用输送带送料

85°C 时加载寿命为 2000 小时

符合 RoHS 指令 2011/65/EU

欧时:
Nichicon 铝电解电容器 WX 系列 16V dc 47μF 表面安装器件 UWX1C470MCL1GB, ±20%容差, 最高+85°C

立创商城:
47uF ±20% 16V

得捷:
CAP ALUM 47UF 20% 16V SMD

艾睿:
Using the aluminum anode based electrolytic UWX1C470MCL1GB electrolytic capacitor, developed by Nichicon, you can filter out lower signal frequencies. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its capacitance value is 47uF. Its leakage current is 7.52@2Min μA. It has a tolerance of 20%. This product is 5.4 mm tall with a diameter of 6.3 mm.

Allied Electronics:
47uF 16 V dc Aluminium Electrolytic Capacitor; WX Series 2000h 6.3Dia.x5.4mm

安富利:
Cap Aluminum 47uF 16V 20% 6.3 X 5.4mm SMD 58mA 2000 hr 85°C T/R

Chip1Stop:
Cap Aluminum Lytic 47uF 16V 20% 6.3 X 5.4mm SMD 58mA 2000h 85℃ T/R

TME:
Capacitor: electrolytic; SMD; 47uF; 16VDC; Ø6.3x5.4mm; ±20%; 2000h

Verical:
Cap Aluminum Lytic 47uF 16V 20% 6.3 X 5.4mm SMD 58mA 2000h 85C Automotive T/R

Newark:
# NICHICON  UWX1C470MCL1GB  SMD Aluminium Electrolytic Capacitor, WX Series, 47 F, 16 V, Radial Can - SMD, 6.3 mm
