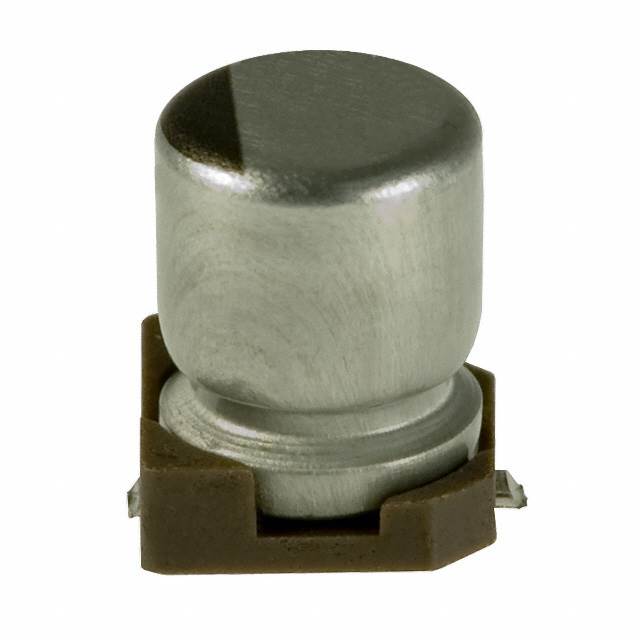

UWT1H010MCL1GB

WT 系列 1 uF 50 V 20 % 表面贴装 贴片式 铝电解电容

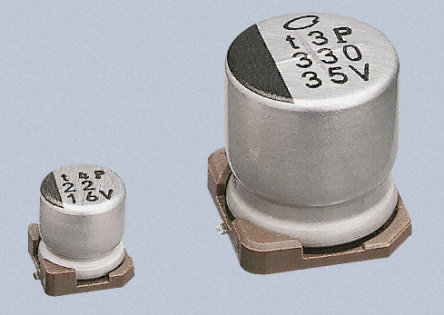

WT 系列

WT 铝电解器系列

宽工作范围 –55 到 +105°C 的片式工作。

额定电压范围为 4 至 50V

额定电容范围为 0.1 至 1500μF

设计用于表面安装到高密度 PC 板上

适用于使用传送带的自动安装机器

电容容差 | 20 %

---|---

温度范围 | -55 至 +105°C

泄漏电流（以较大值为准） | 0.01CV 或 3μA（以较大值为准）

105°C 时的预期寿命 | 1000 小时

欧时:
Nichicon 铝电解电容器 WT 系列 50V dc 1μF 表面安装器件 UWT1H010MCL1GB, ±20%容差, 最高+105°C

得捷:
CAP ALUM 1UF 20% 50V SMD

立创商城:
1uF ±20% 50V

艾睿:
Use this relatively high equivalent series resistance electrolytic UWT1H010MCL1GB aluminum capacitor from Nichicon to generate high heat for a given current level. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its leakage current is 3@2Min μA. This product is 5.4 mm tall with a diameter of 4 mm. Its capacitance value is 1uF.

Allied Electronics:
1uF 50 V dc Aluminium Electrolytic Capacitor, WT Series 1000h 4 Dia. x 5.4mm

安富利:
Cap Aluminum 1uF 50V 20% 4 X 5.4mm SMD 6.3mA 1000 hr 105°C T/R

Chip1Stop:
Cap Aluminum Lytic 1uF 50V 20% 4 X 5.4mm SMD 6.3mA 1000h 105ÂÂ℃ T/R

TME:
Capacitor: electrolytic; SMD; 1uF; 50VDC; Ø4x5.4mm; ±20%; 1000h

Verical:
Cap Aluminum Lytic 1uF 50V 20% 4 X 5.4mm SMD 6.3mA 1000h 105C Automotive T/R

Newark:
# NICHICON  UWT1H010MCL1GB  SMD Aluminum Electrolytic Capacitor, Radial Can - SMD, 1 µF, 50 V, WT Series
