UCC28019DR

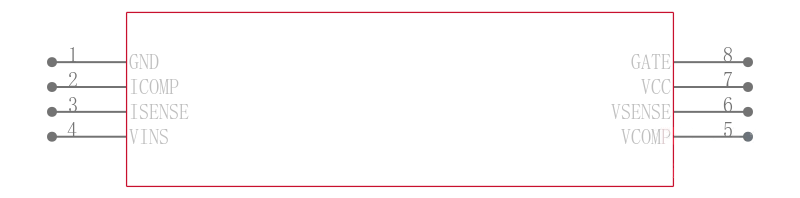

8针连续传导模式（CCM ） PFC控制器 8-Pin Continuous Conduction Mode CCM PFC Controller

DESCRIPON

The UCC28019 8-pin active Power Factor Correction PFC controller uses the boost topology operating in Continuous Conduction Mode CCM. The controller is suitable for systems in the 100 W to >2 kW range over a wide-range universal ac line input. Startup current during under-voltage lockout is less than 200µA. The user can control low power standby mode by pulling the VSENSE pin below 0.77 V.

FEATURES

• 8-pin Solution Without Sensing Line Voltage Reduces External Components

• Wide-Range Universal AC Input Voltage

• Fixed 65-kHz Operating Frequency

• Maximum Duty Cycle of 97%

• Output Over/Under-Voltage Protection

• Input Brown-Out Protection

• Cycle-by-Cycle Peak Current Limiting

• Open Loop Detection

• Low-Power User Controlled Standby Mode
