高级稳压脉宽调制器 Advanced Regulating Pulse Width Modulators
Encode messages with pulsating voltages by using this voltage mode PWM controller from Texas Instruments. With an output that has a voltage of 60 V, this is power management at its best. This voltage mode driver supports boost|buck|flyback|forward|full-bridge|half-bridge|push-pull topology. Its 2 PWM outputs produce a current of 200Max mA. Its switching regulator has a frequency of 500Min kHz. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage mode driver"s maximum duty cycle is 45Min %. This device has a minimum operating supply voltage of 8 V and a maximum of 40 V. This voltage mode driver has a minimum operating temperature of 0 °C and a maximum of 70 °C.
频率 450 kHz
电源电压DC 8.00V min
输出接口数 2
输入电压DC 40.0 V
输出电压 60 V
输出电流 200 mA
耗散功率 1000 mW
调节输出数 2
上升时间 120 ns
开关频率 500 kHz
拓扑结构 Buck, Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
占空比 45 %
最大占空比 0.45
下降时间 25 ns
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 1000 mW
电源电压 8V ~ 40V
安装方式 Surface Mount
引脚数 16

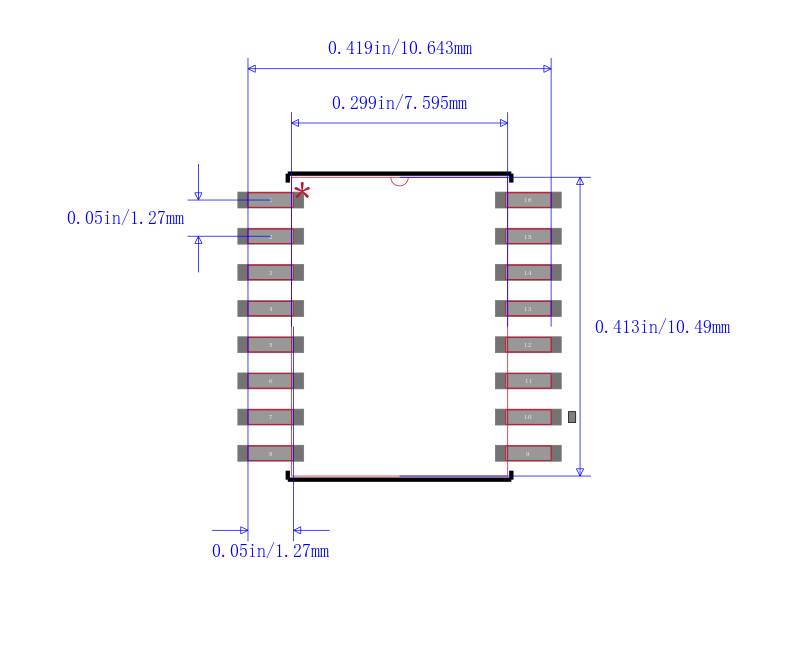

封装 SOIC-16
封装 SOIC-16
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UC3524ADWTR TI 德州仪器 | 当前型号 | 当前型号 |
UC2524ADW 德州仪器 | 完全替代 | UC3524ADWTR和UC2524ADW的区别 |
UC3524ADW 德州仪器 | 完全替代 | UC3524ADWTR和UC3524ADW的区别 |
