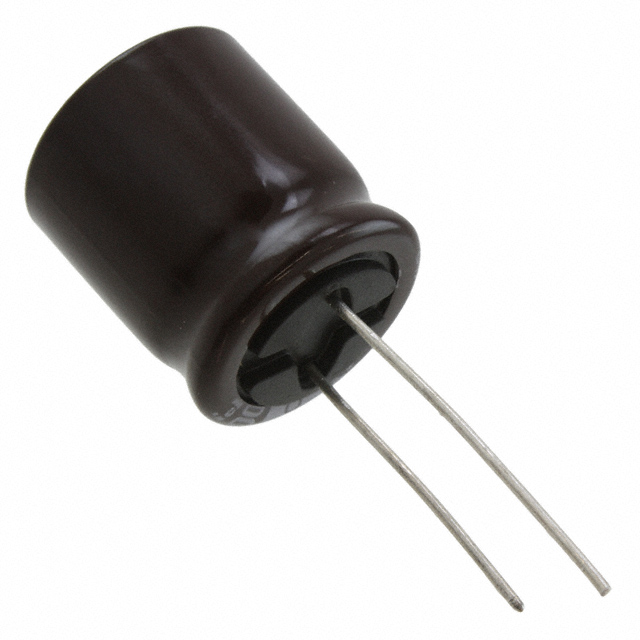

UPJ2A271MHD6

PJ 系列 270 uF 100 V 20 % 通孔 径向 铝电解电容

铝电解器 径向，Can - 105°C 时为 5000 小时

得捷:
CAP ALUM 270UF 20% 100V RADIAL

立创商城:
270uF ±20% 100V

艾睿:
Since the anode is made out of pure aluminum, you&s;ll be able to filter lower frequencies with ease using Nichicon&s;s electrolytic UPJ2A271MHD6 aluminum capacitor. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its capacitance value is 270uF. Its leakage current is 810@1Min μA. The UPJ2A271MHD6 aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. This product is 20 mm tall with a diameter of 18 mm.

安富利:
Cap Aluminum 270uF 100V 20% 18 X 20mm Radial 7.5mm 918mA 5000 hr 105°C Bulk

Verical:
Cap Aluminum Lytic 270uF 100V 20% 18 X 20mm Radial 7.5mm 918mA 5000h 105C Bulk
