UVZ0J472MHD

4.7mF ±20% 6.3V Φ12.5mm 20mm

铝电解器 径向，Can - 105°C 时为 1000 小时

立创商城:
4700uF ±20% 6.3V

得捷:
CAP ALUM 4700UF 20% 6.3V RADIAL

贸泽:
Aluminum Electrolytic Capacitors - Leaded 6.3volts 4700uF 12.5x20 20% 5LS

艾睿:

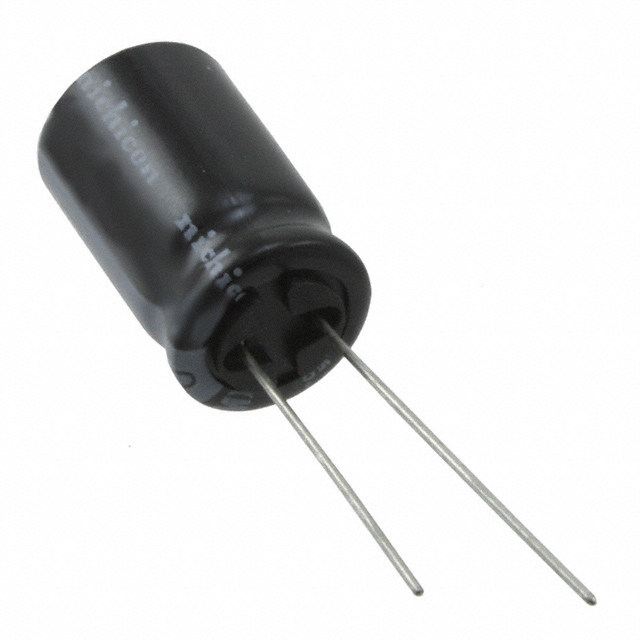

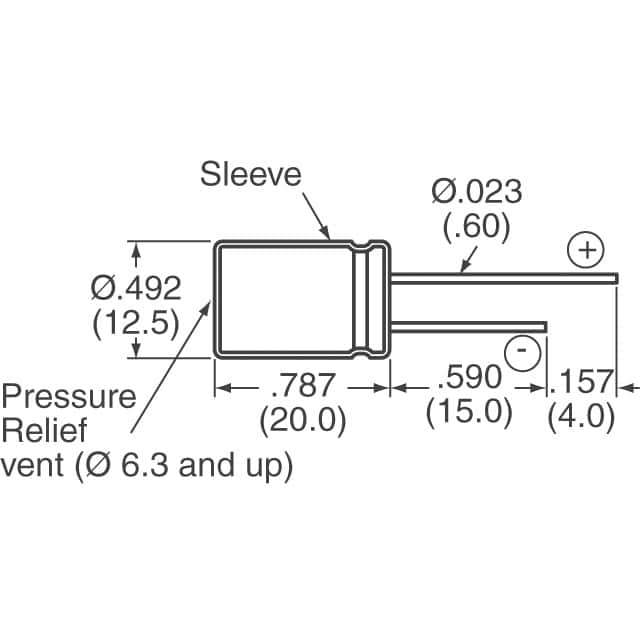

Using this electrolytic UVZ0J472MHD aluminum capacitor from Nichicon in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 6.3 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. This product is 20 mm tall with a diameter of 12.5 mm. Its leakage current is 888.3@1Min|296.1@2Min μA. It has a tolerance of 20%. The UVZ0J472MHD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 4700uF.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 4700uF 20% Radial 12.5X20 LS 5mm

Verical:
Cap Aluminum Lytic 4700uF 6.3V 20% 12.5 X 20mm Radial 5mm 1090mA 1000h 105C Bulk
