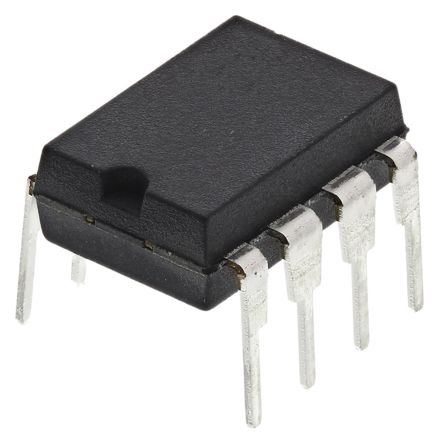

UCC2808N-1

低功耗电流模式推挽PWM LOW POWER CURRENT MODE PUSH-PULL PWM

离线转换器 推挽式 拓扑 1MHz 8-PDIP

得捷:
IC OFFLINE SWITCH PUSH-PULL 8DIP

立创商城:
UCC2808N-1

欧时:
### PWM Controllers 1MHz, UCC28xx Series, Texas Instruments### PWM Pulse Width Modulation Controllers, Texas Instruments

贸泽:
开关控制器 Low Pwr Current Mode Push-Pull PWM

艾睿:
Properly supply the right amount of current to an external system using this UCC2808N-1 current controller from Texas Instruments. Its 2 PWM outputs produce a current of 1000Max mA. This current mode controller supports full-bridge|half-bridge|push-pull topology. Its switching regulator has a frequency of 1000 kHz. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device has a minimum operating supply voltage of 7.6 V and a maximum of 15 V. This current mode controller&s;s maximum duty cycle is 50 %.

安富利:
Current Mode PWM Controller 1A 8-Pin PDIP Tube

Chip1Stop:
Current Mode PWM Controller 1A 8-Pin PDIP Tube

Verical:
Current Mode PWM Controller 1A 8-Pin PDIP Tube

德州仪器TI:
Low power current mode push-pull PWM with 12.5/8.3V UVLO, -40°C to 85°C
