密封铅酸电池充电器 Sealed Lead-Acid Battery Charger
Protect your batteries from operating outside its safe operating area with this smart charge charge controller from Texas Instruments. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a maximum of 40 V. This device runs on Lead-Acid. This battery gauge has an operating temperature range of -40 °C to 70 °C.
电源电压DC 40.0 V
输入电压DC 40.0 V
输出电流 0.04 A
耗散功率 1000 mW
工作温度Max 70 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压 4.8V ~ 40V
安装方式 Surface Mount
引脚数 20

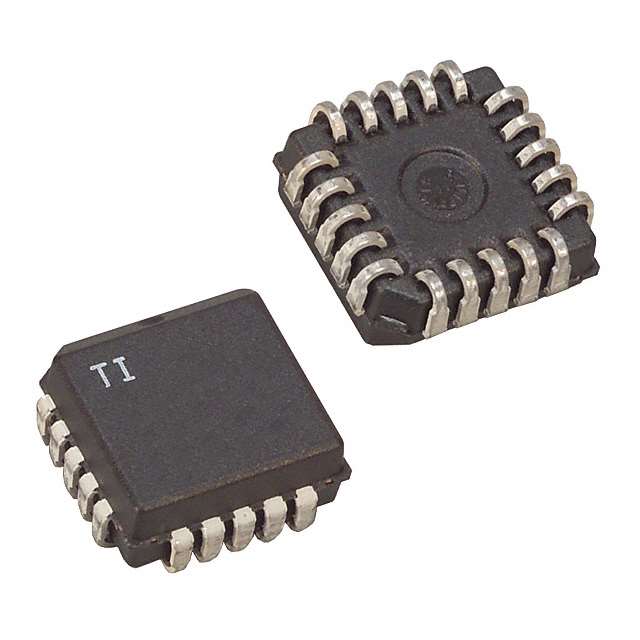

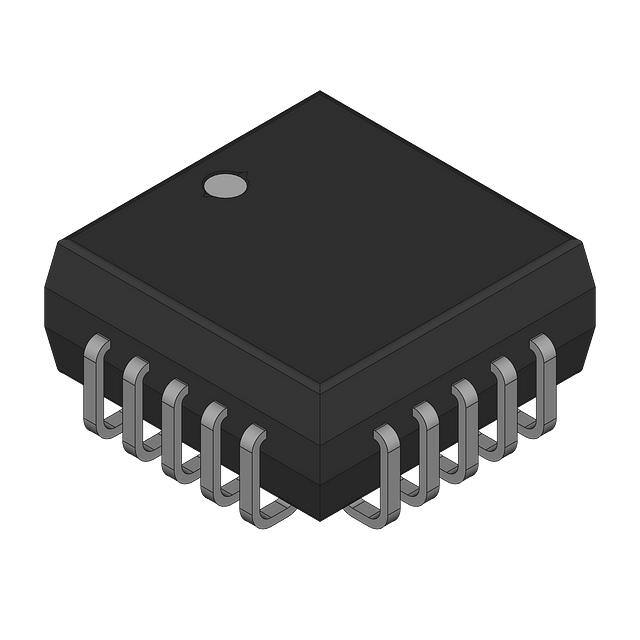

封装 PLCC-20
长度 8.96 mm
宽度 8.96 mm
高度 4.06 mm
封装 PLCC-20
工作温度 -40℃ ~ 70℃
产品生命周期 Not Recommended for New Designs
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UC2906Q TI 德州仪器 | 当前型号 | 当前型号 |
UC2906DW 德州仪器 | 完全替代 | UC2906Q和UC2906DW的区别 |
UC2906DWTR 德州仪器 | 类似代替 | UC2906Q和UC2906DWTR的区别 |
UC3906Q 德州仪器 | 类似代替 | UC2906Q和UC3906Q的区别 |
