UEB220-6U

PCI Express / PCI 连接器 DIN UNCOMMITTED 6U X 12.20"L310MM

FR4 Epoxy Glass Body , Vectorbord® Extender Card

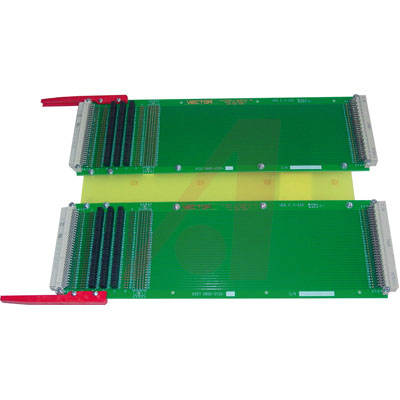

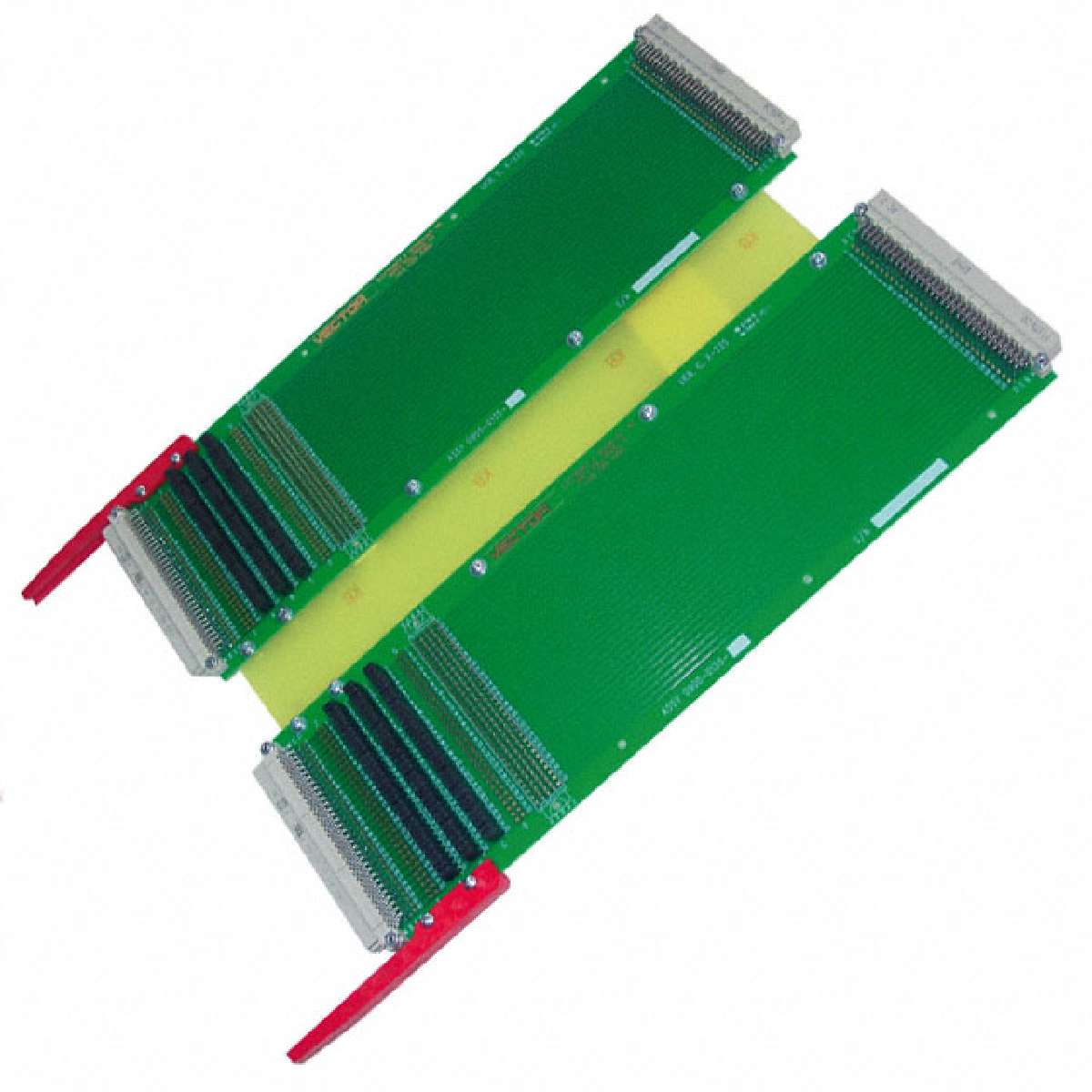

VME J1 and J2 extender assembly is for 160 mm and 220 mm depths. 3-layer construction, controlled impedance design, and patented signal trace shielding minimize crosstalk. Jumpers are provided for interrupting all signal lines. Mounting pads for additional DIN connector or for the test point mounting of logic analyzer also included.

** VMEE-M

.

* 12.20" 310 mm. ** Width:** 9.19" 233 mm 6U. ** Material:** FR4 Epoxy Glass. ** Impedance:** Controlled. ** Current Rating:** 5 amps per 10° rise. ** Voltage Rating:** 200 V RMS , or 300 VDC. ** Jumpers:** Included; for signal line interrupt. ** Layer Design:** 3-layer; trace shielding for each signal line.

** VMEE-J1 and VMEE-J2

.

* 12.20" 310 mm. ** Width:** 3.94" 100.1 mm 3U. ** Material:** FR4 Epoxy Glass. ** Impedance:** Controlled. ** Current Rating:** 5 amps per 10° rise. ** Voltage Rating:** 200 V RMS , or 300 VDC. ** Jumpers:** Included; for signal line interrupt. ** Layer Design:** 3-layer; trace shielding for each signal line.
