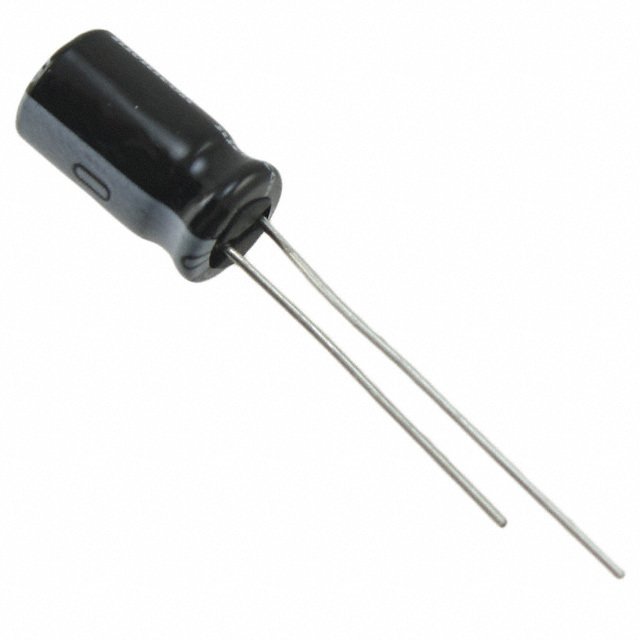

UHE1V560MED1TD

NICHICON  UHE1V560MED1TD  铝电解电容, 56uF, 35V, 径向引线

56µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C

得捷:
CAP ALUM 56UF 20% 35V RADIAL

立创商城:
56uF ±20% 35V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 56uF 35V 105c

e络盟:
铝电解电容, 56uF, 35V, 径向引线

艾睿:
By using pure aluminum foil in the anode, this electrolytic UHE1V560MED1TD aluminum capacitor from Nichicon can easily filter low frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 56uF. Its leakage current is 19.6@2Min μA. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. This product is 11 mm tall with a diameter of 6.3 mm. The UHE1V560MED1TD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%.

Verical:
Cap Aluminum Lytic 56uF 35V 20% 6.3 X 11mm Radial 2.5mm 340mA 5000h 105C Ammo

Newark:
# NICHICON  UHE1V560MED1TD  Electrolytic Capacitor, Miniature, 56 µF, 35 V, HE Series, ± 20%, Radial Leaded, 6.3 mm
