47uF ±20% 80V 480mA100kHz480mA Φ10mm
47µF 80V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 125°C
立创商城:
47uF ±20% 80V
得捷:
CAP ALUM 47UF 20% 80V RADIAL
艾睿:

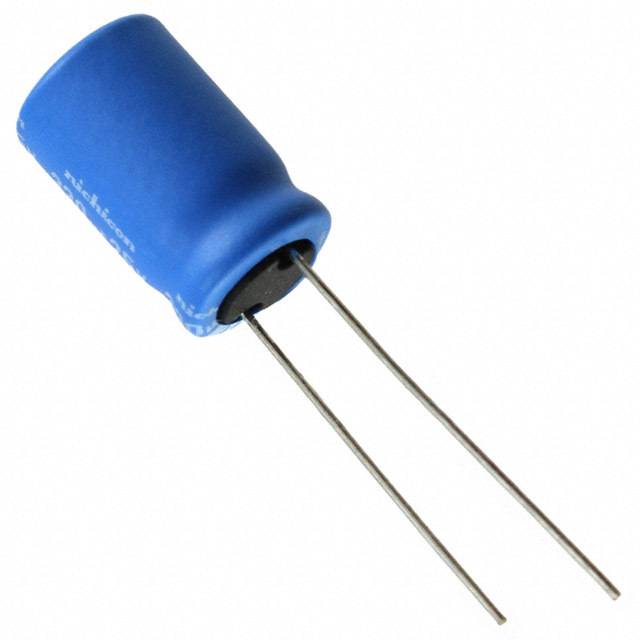

Manufactured from Nichicon, this electrolytic UBT1K470MPD aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 80 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 125 °C. This product is 12.5 mm tall with a diameter of 10 mm. It has a tolerance of 20%. The UBT1K470MPD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 47uF. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 4@1Min μA.
Verical:
Cap Aluminum Lytic 47uF 80V 20% 10 X 12.5mm Radial 5mm 480mA 3000h 125C Automotive Bulk
额定电压DC 80.0 V
电容 47000000 pF
等效串联电阻ESR 0.8 Ω
容差 ±20 %
产品系列 UBT
纹波电流 240mA @120Hz
纹波电流高频 240mA @120Hz
纹波电流低频 480mA @100kHz
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 80 V

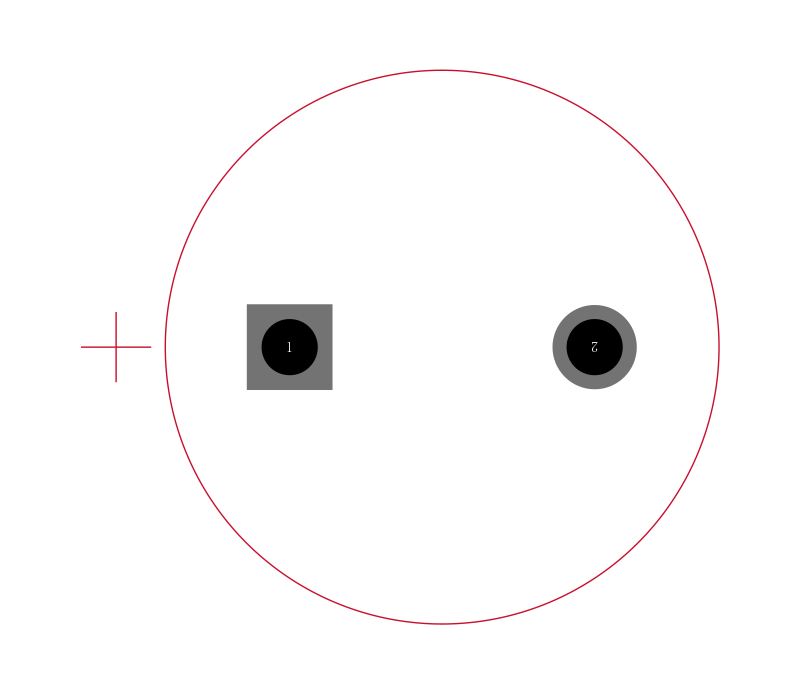

安装方式 Through Hole
封装 Radial

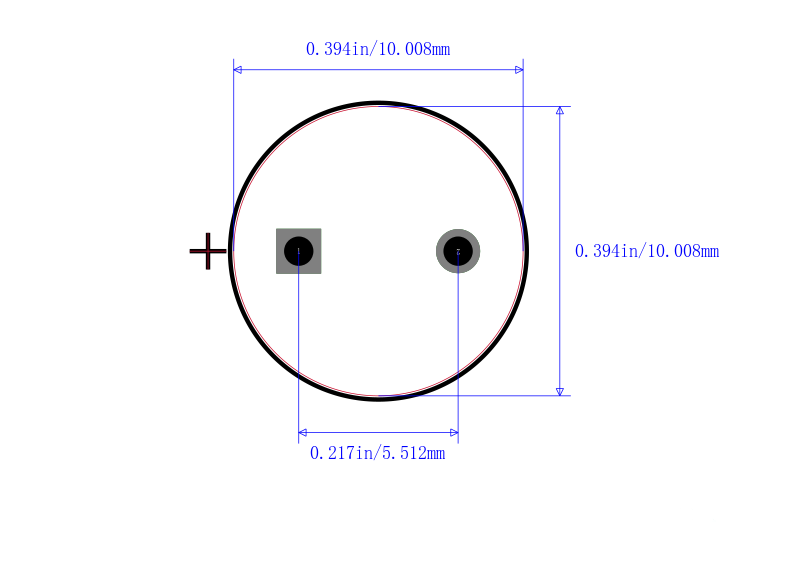

高度 12.5 mm
直径 10.0 mm
封装 Radial
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
最小包装 2000
寿命(小时) 3000 h
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
