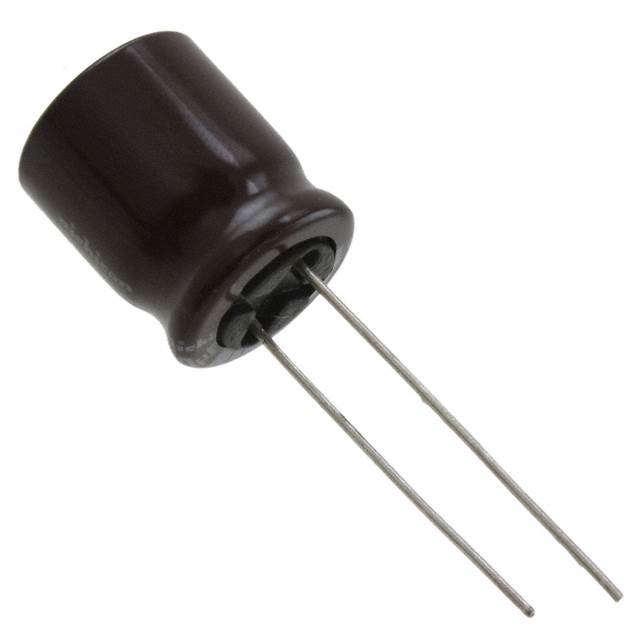

UPM1H181MHD6

PM 系列 180 uF 50 V 20 % 通孔 径向 铝电解电容

180µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C

立创商城:
180uF ±20% 50V

得捷:
CAP ALUM 180UF 20% 50V RADIAL

艾睿:
Using the aluminum anode based electrolytic UPM1H181MHD6 electrolytic capacitor, developed by Nichicon, you can filter out lower signal frequencies. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 270@1Min μA. This product is 15 mm tall with a diameter of 12.5 mm. It has a tolerance of 20%. The UPM1H181MHD6 aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its capacitance value is 180uF.

安富利:
Cap Aluminum 180uF 50V 20% 12.5 X 15mm Radial 5mm 605mA 5000 hr 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 180uF; 50VDC; ±20%
